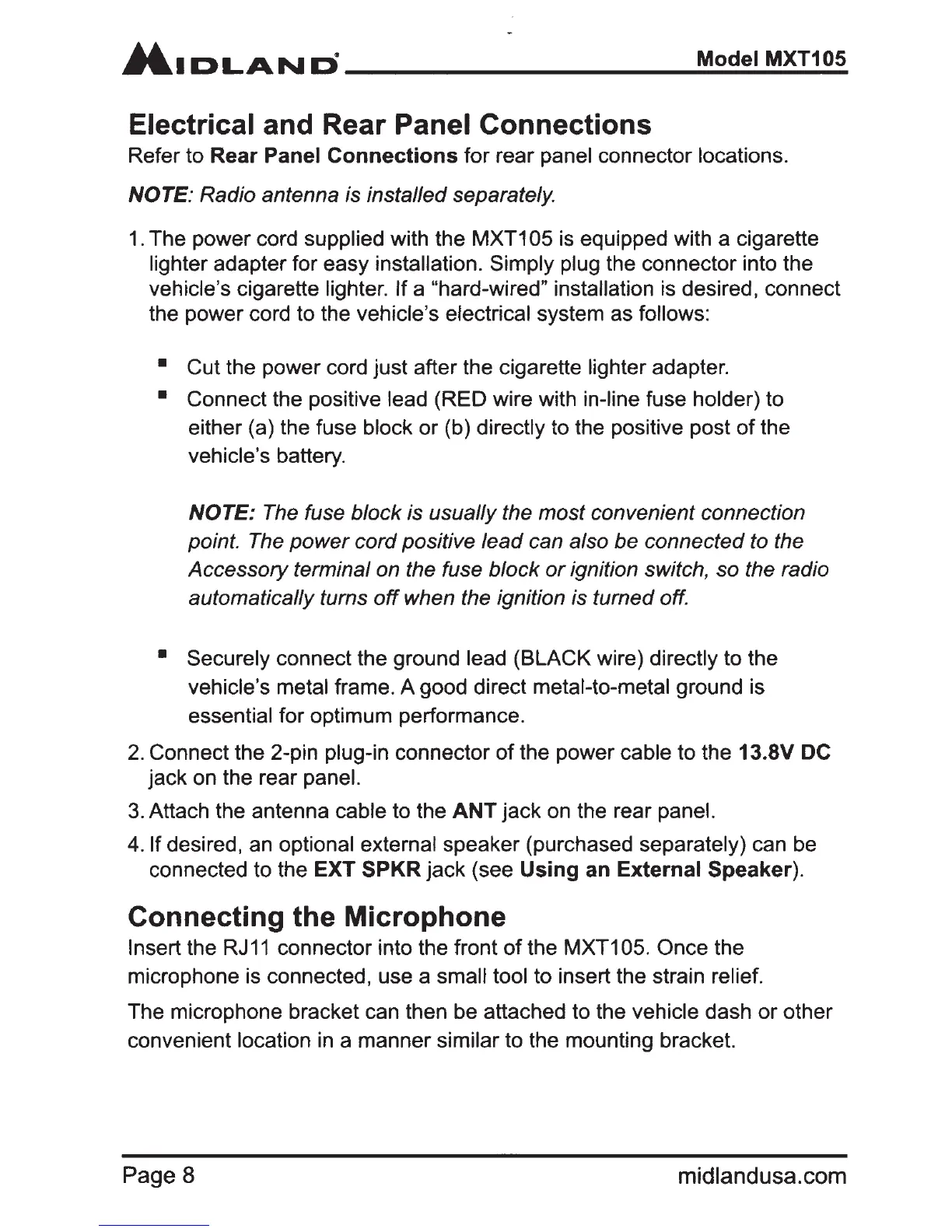

M_o_d_e_I_M_X_T_1_05
Electrical and Rear Panel Connections
Refer to Rear Panel Connections for rear panel connector locations.
NOTE: Radio antenna is installed separately.
1.
The power cord supplied with the MXT105
is
equipped with a cigarette
lighter adapter for easy installation. Simply plug the connector into the
vehicle's cigarette lighter.
If
a "hard-wired" installation
is
desired, connect
the power cord to the vehicle's electrical system as follows:
• Cut the power cord just after the cigarette lighter adapter.
• Connect the positive lead (RED wire with in-line fuse holder) to
either (a) the fuse block or (b) directly to the positive post
of
the
vehicle's battery.
NOTE:
The
fuse block is usually the most convenient connection
point. The power cord positive lead can also
be
connected to the
Accessory terminal on the fuse block
or
ignition switch
1
so the radio
automatically turns
off
when the ignition is turned off.
• Securely connect the ground lead (BLACK wire) directly to the
vehicle's metal frame. A good direct metal-to-metal ground is
essential for optimum performance.
2. Connect the 2-pin plug-in connector
of
the power cable to the 13.8V DC
jack on the rear panel.
3. Attach the antenna cable to the ANT jack on the rear panel.
4.1f desired, an optional external speaker (purchased separately) can be
connected to the
EXT SPKR jack (see Using
an
External Speaker).
Connecting the Microphone
Insert the
RJ11
connector into the front
of
the MXT1 05. Once the
microphone is connected, use a small tool to insert the strain relief.
The microphone bracket can then be attached to the vehicle dash or other
convenient location in a manner similar to the mounting bracket.
Page
8
