BATTERY INSTALLATION
Your Nautico1 radio operates with either 4 AA alkaline batteries or an optional
NiMH battery pack. The belt clip should be removed (see below) to ease
installation or removal of the batteries.
To install the batteries:

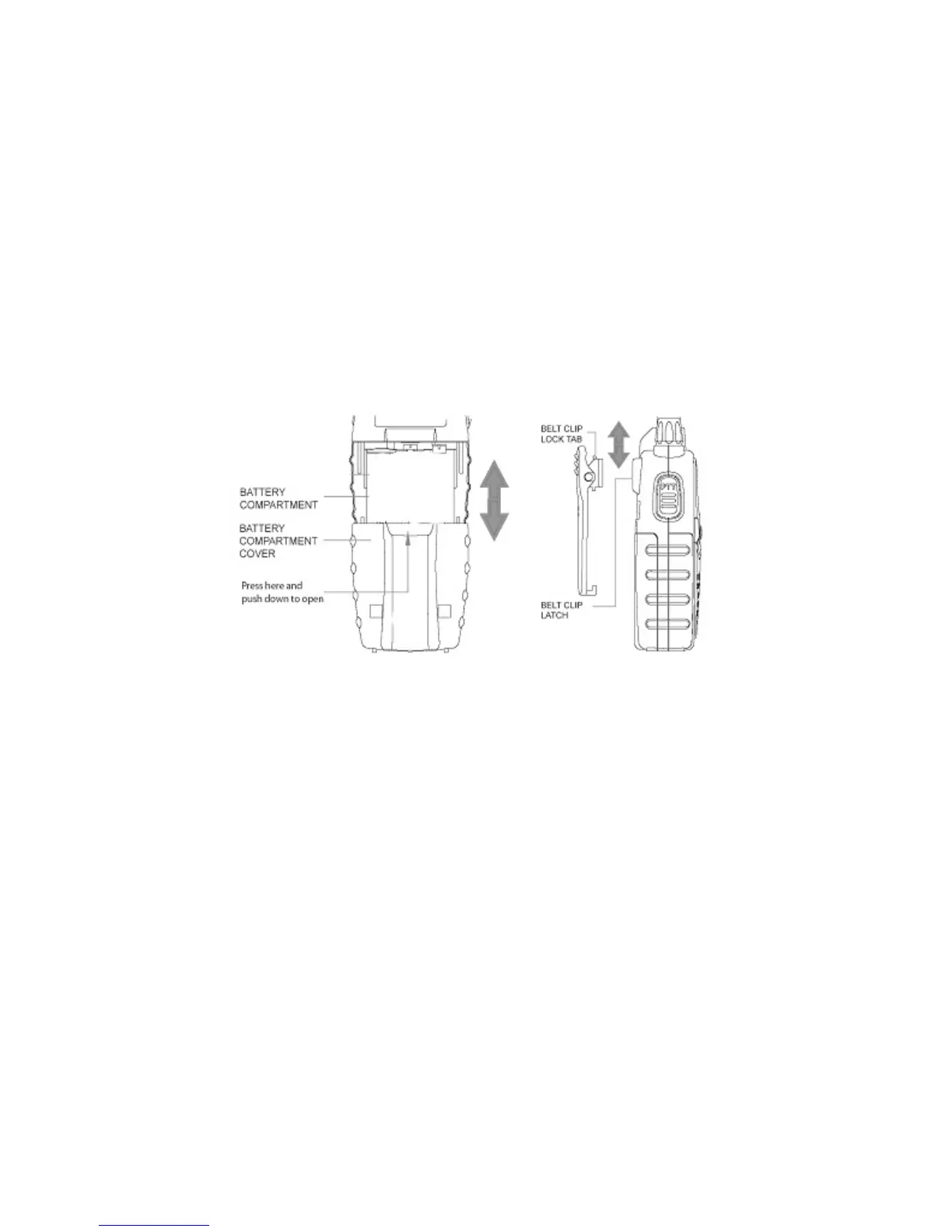

1. With the back of the radio facing you, remove the belt clip (see diagram below)
for easy access, then remove the Battery Cover
by pressing down on the top center and sliding it down from the radio.
2. Insert 4 AA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the radio from operating or
may damage the radio.
3. Return the battery cover by sliding it up on the radio. Replace the belt clip,
making sure it locks into place.
To install the BELT CLIP, slide the clip down into the slot on the back of the
radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the
LOCK TAB down, then gently pull the belt clip up toward the top of the radio.
6
