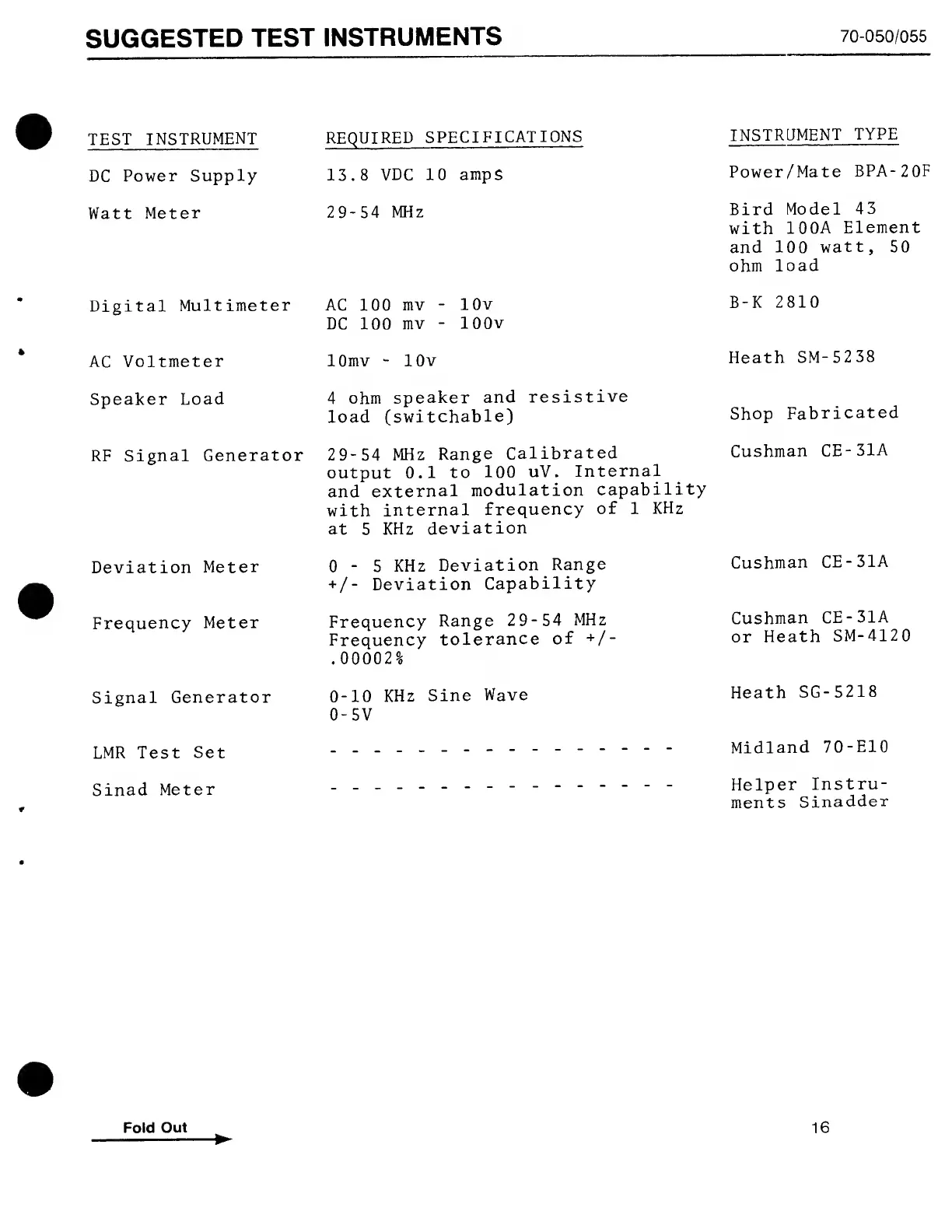

SUGGESTED TEST INSTRUMENTS
70-050/055
TEST INSTRUMENT
DC Power Supply
Watt Meter
Digital Multimeter
AC Voltmeter
Speaker Load
RF Signal Generator
Deviation Meter
Frequency Meter
Signal Generator
LMR Test Set
Sinad Meter
REQUIRED SPECIFICATIONS
13.8 VDC 10 amps
29-54 MHz
AC 100 mv - lOv
DC 100 mv - lOOv
lOmv - lOv
4 ohm speaker and resistive
load (switchable)
29-54 MHz Range Calibrated
output 0.1 to 100 uV. Internal
and external modulation capability
with internal frequency of 1 KHz
at 5 KHz deviation
0-5 KHz Deviation Range
+/- Deviation Capability
Frequency Range 29-54 MHz
Frequency tolerance of +/-
. 00002 %
0-10 KHz Sine Wave
0-5V
INSTRUMENT TYPE
Power/Mate BPA-20F
Bird Model 43
with 100A Element
and 100 watt, 50
ohm load
B-K 2810
Heath SM-5238
Shop Fabricated
Cushman CE-31A
Cushman CE-31A
Cushman CE-31A
or Heath SM-4120
Heath SG-5218
Midland 70-E10
Helper Instru¬
ments Sinadder
Fold Out 16
