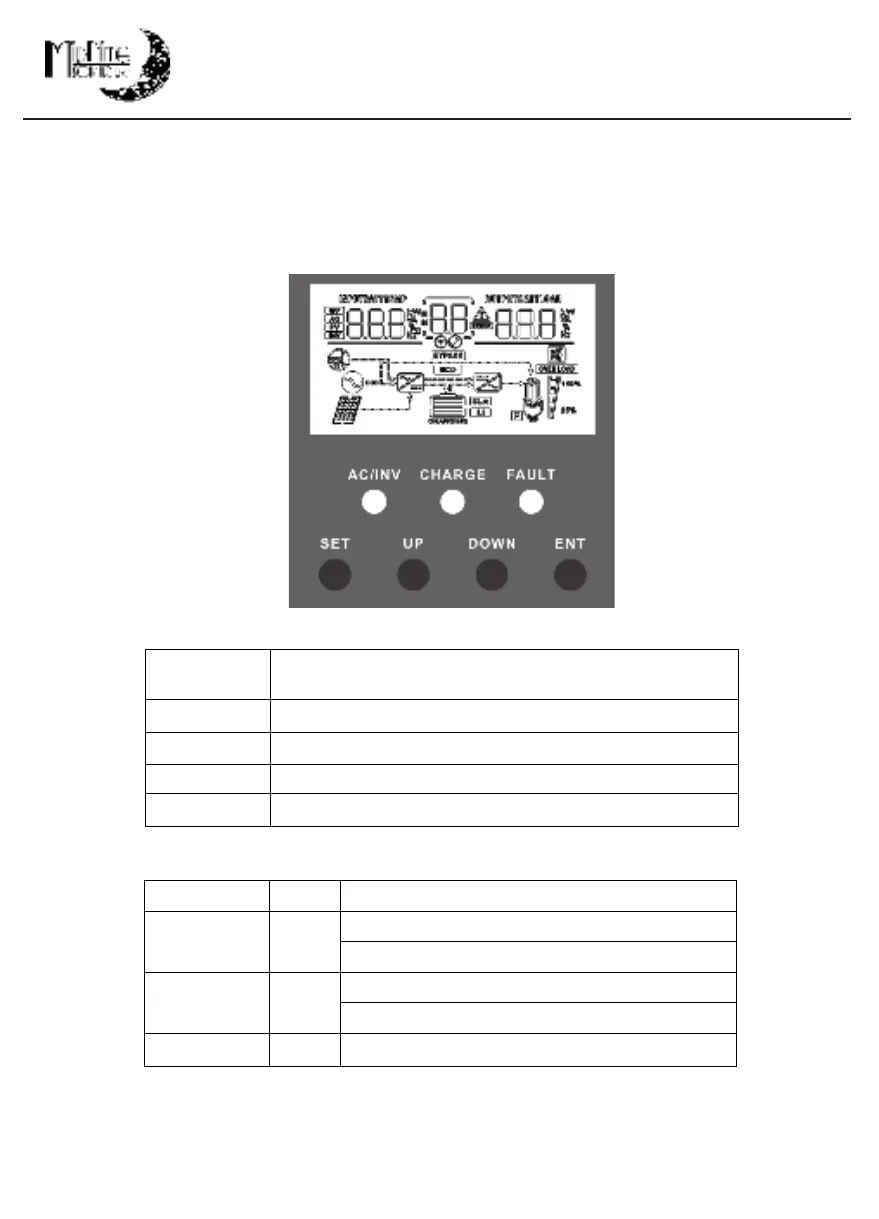

4. LCD screen operating instructions
4.1 Operation and display panel
The operation and display panel is as shown below, including 1 LCD screen, 3 indicators and 4
operation buttons.
Operation buttons introduction
Indicators introduction
Function
buttons
Description
SET Enter/Exit Settings menu
UP Previous choice
DOWN Next choice
ENT Confirm/Enter Options under the settings menu,
Indicators Colors Description
AC/INV Yellow
Steady on : Mains output
Flash: Inverter output
CHARGE Green
Flash: Battery charging
Steady on : Charging completed
FAULT Red Steady on : Fault state
