MidNite MN3024DIY - Appearance

6 of 39
10-527-1 MN3024DIY REV A
MN3024DIY
User Manual

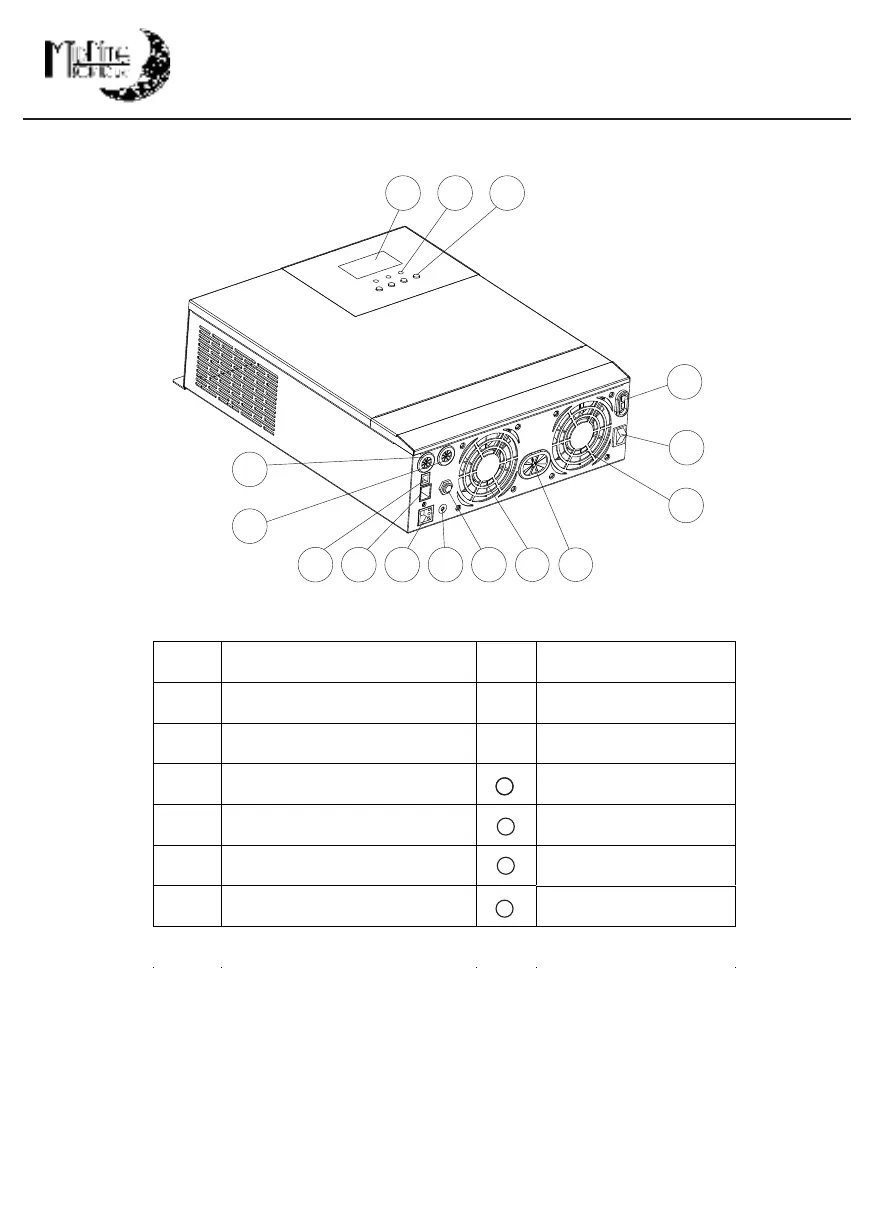

1.3 Appearance
1
2
3
4
6
8
5
7
9
10
11
121314
8
①
AC input port
⑨ Battery port
② AC output port
⑩ ON/OFF rocker switch
③ USB communication port
11
PV port
④ RS485/CAN communication port
12 Touch button
⑤ Dry contact port
13
LED Indicator
⑥
Grounding
screw
14
LCD screen
⑦ AC input breaker
⑧ Cooling fan
