2.1 Installation and wiring
Installation steps:
Step 1: Determine the installation position and the space for heat dissipation. Determine the
installation position of the MNS Hybrid Inverter, such as wall surface; when installing the MNS
Hybrid Inverter, ensure that there is enough air flowing through the heat sink, and space of at
least 200mm/8 inches to the left and right air outlets of the inverter are open to ensure natural

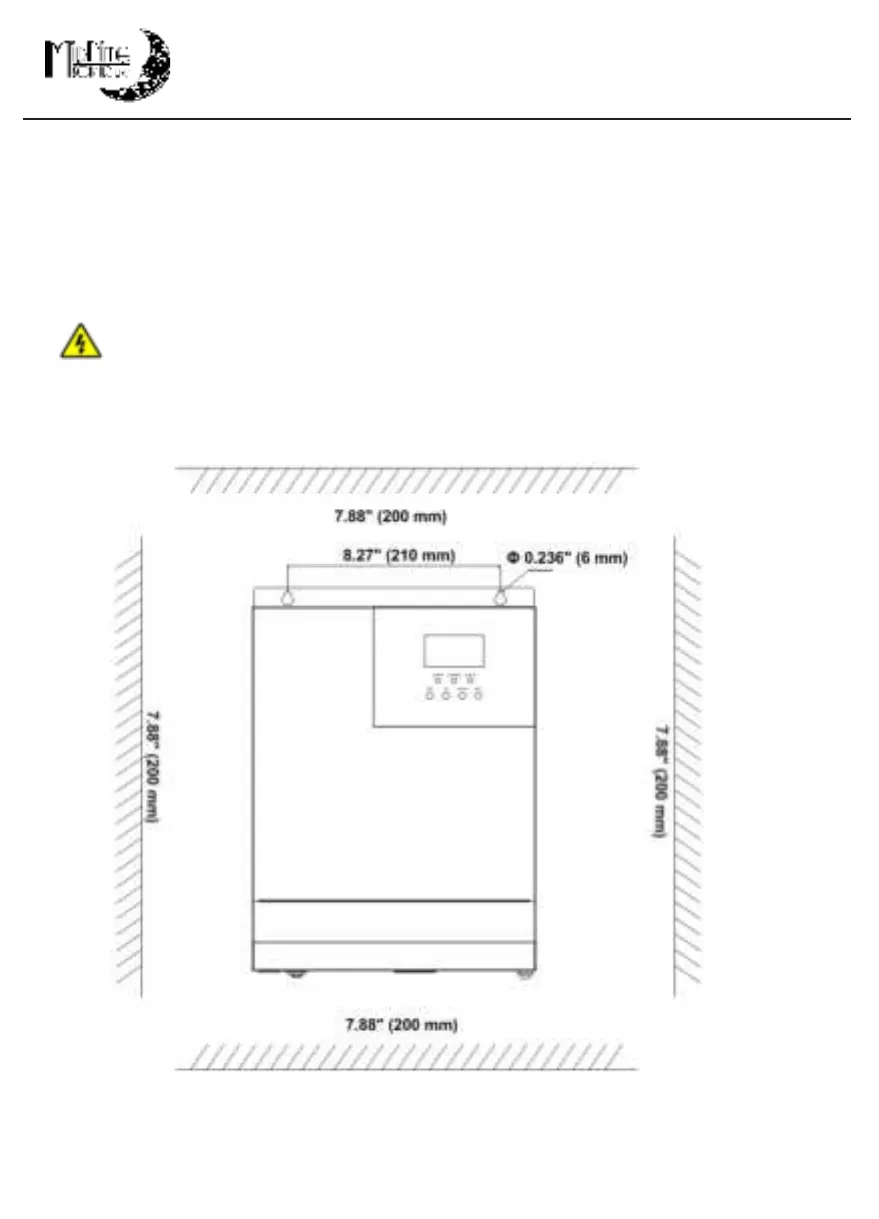

convection heat dissipation. Refer to the installation diagram of the unit as above.
Warning: Danger of explosion! Never install the MNS Hybrid Inverter and lead-acid
batteries in the same confined space! Also do not install in a confined place where battery gas may collect.
