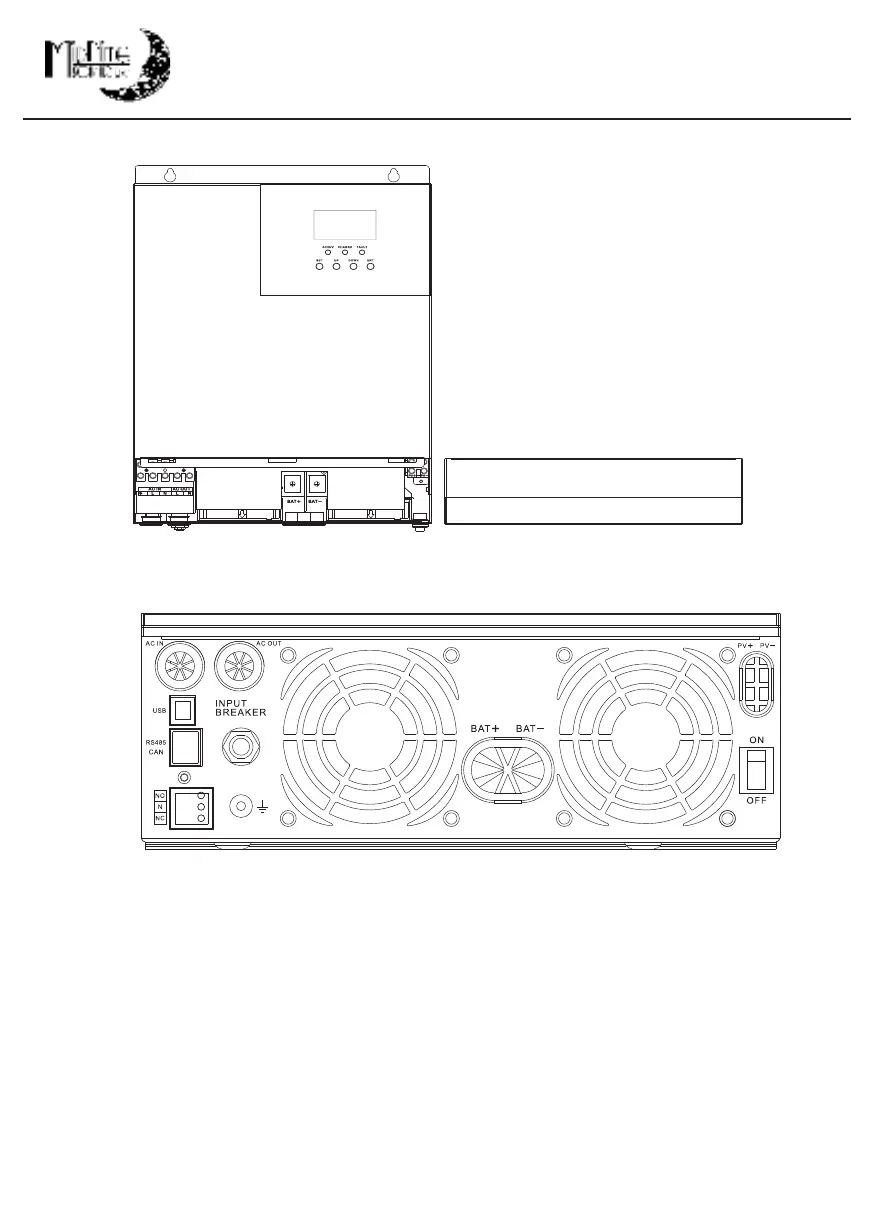

Step 2: Remove the terminal cover
Step3: Wiring
① Prior to AC input/output wiring, disconnect the external circuit breaker
and confirm that the wire used is the appropriate AWG. Please
refer to Section 2.2 on pg. 8 “Wiring Specifications and Circuit Breaker
Selection”;
②ProperlyconnecttheACinputwireaccordingtothewire
sequenceandterminalpositionshownintheigureonthenextpage.
Pleaseconnectthegroundwireirst,andthenthehotwireandthen
theneutralwire;
AC input / output wiring method:
