10-527-1 MN3024DIY REV A
MN3024DIY
User Manual
：Ground L：Live N：Neutral

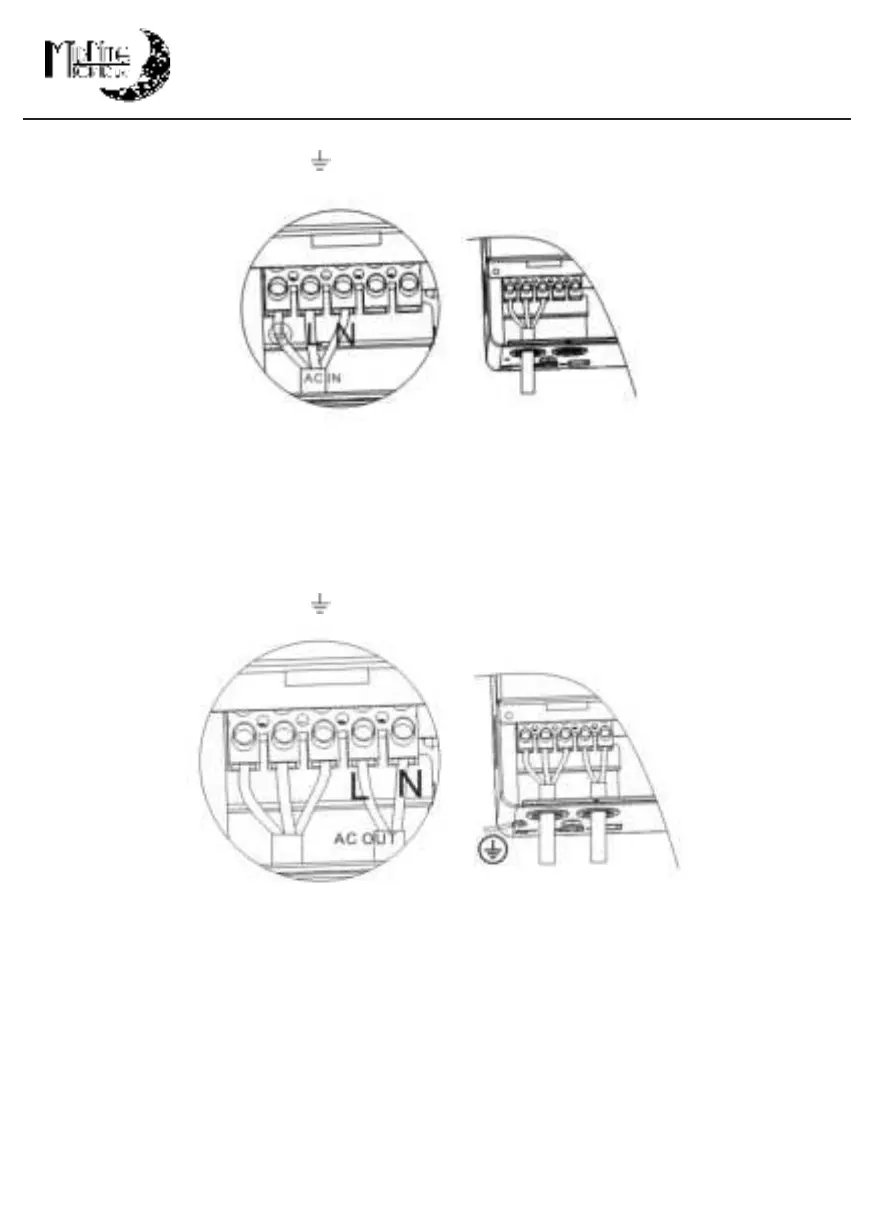

③ Properly connect the AC output wire according to the wire sequence and terminal
position shown in the figure below. Please connect the ground wire first, and then the hot
wire and the neutral wire. The ground wire is connected to the grounding screw hole on
the cabinet using a ring terminal or copper lug.
：Ground L：Live N：Neutral
Note: The grounding wire shall be as large as possible (Not less than 10 AWG).
The grounding pointshall be as close as possible to the MNS Hybrid Inverter
The shorter the grounding wire, the better.
