Refer to the table below for recommended AC input wire diameter and switch:
➣
Recommended battery input wire diameter and switch selection
Model
Recommended
AC Input Wiring
Diameter
Maximum
bypass
input current
Recommended
circuit breaker
type
MN3024DIY
8 AWG
40A
MNEAC40
Model
Recommended
battery wiring
diameter
Rated battery
discharge
current
Maximum
charge current
Recommended
circuit breaker
type
MN3024DIY
2 AWG
125A
100A
MNEDC125

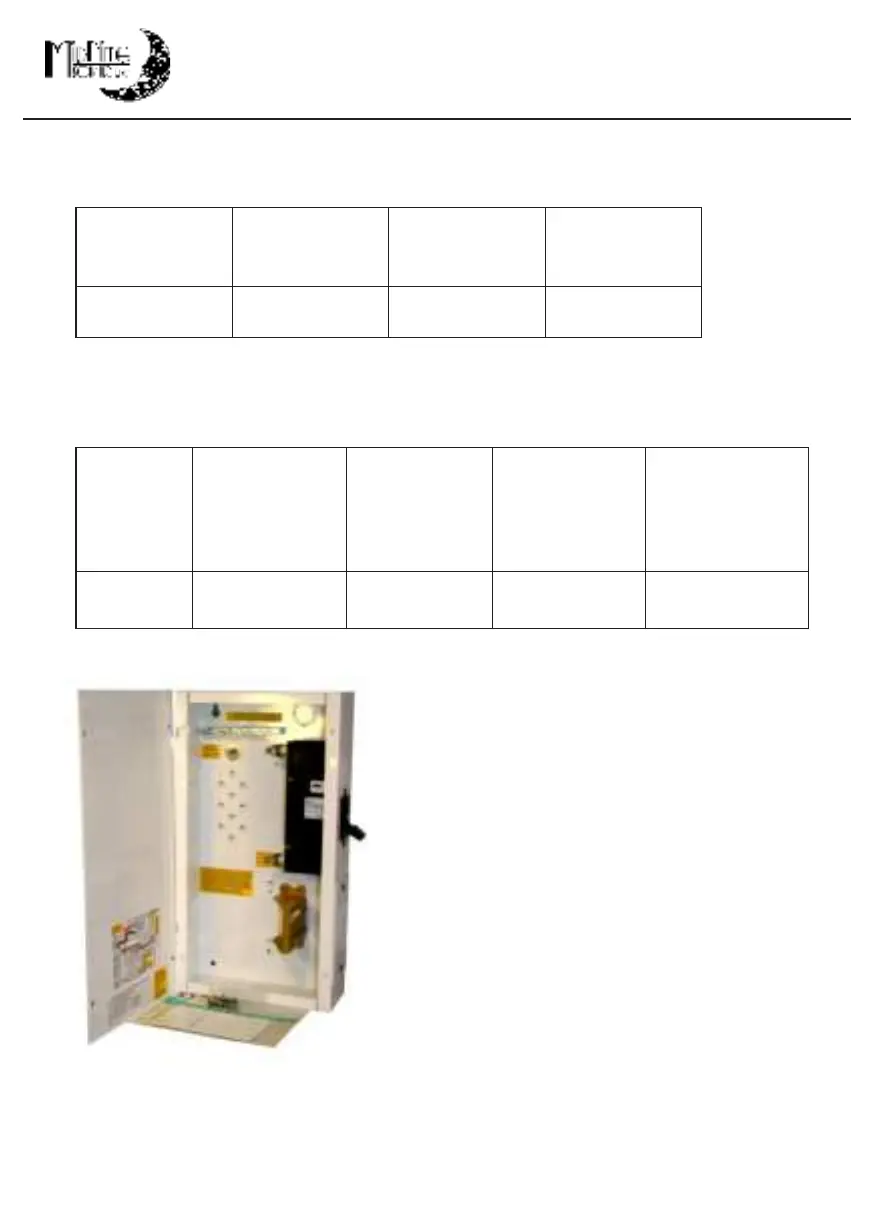

MNDC125 sold separately
· A convenient clean box for DC breakers.
· Comes with MNDC125 inverter battery breaker.
· Can also hold up to five dinrail breakers.
· Mounting for shunt
· ETL listed for the USA and Canada
· Bonded battery/inverter negative tie point
· Equipment ground bus bar
· compliment of conduit knock outs
Dimensions: 17"H x 9"W x 3.5"D
