GENERAL
Lead-acid batteries: GEL, AGM / SPIRAL, Flooded, Power supply / Memory Save
Number of cells: 6
Rated capacity: 20 to 250Ah
Note: A 24 V operation consists of two 12 V (6cell) batteries connected in series.
INPUT RATINGS
230 V AC (16A) 50 / 60Hz
OUTPUT RATINGS
Charger DC Voltage Amps Watts
PRO 15 12 V 15 A 180
PRO 25 12 V 25 A 300
PRO 25-2 12 V 2 X 25 A 300

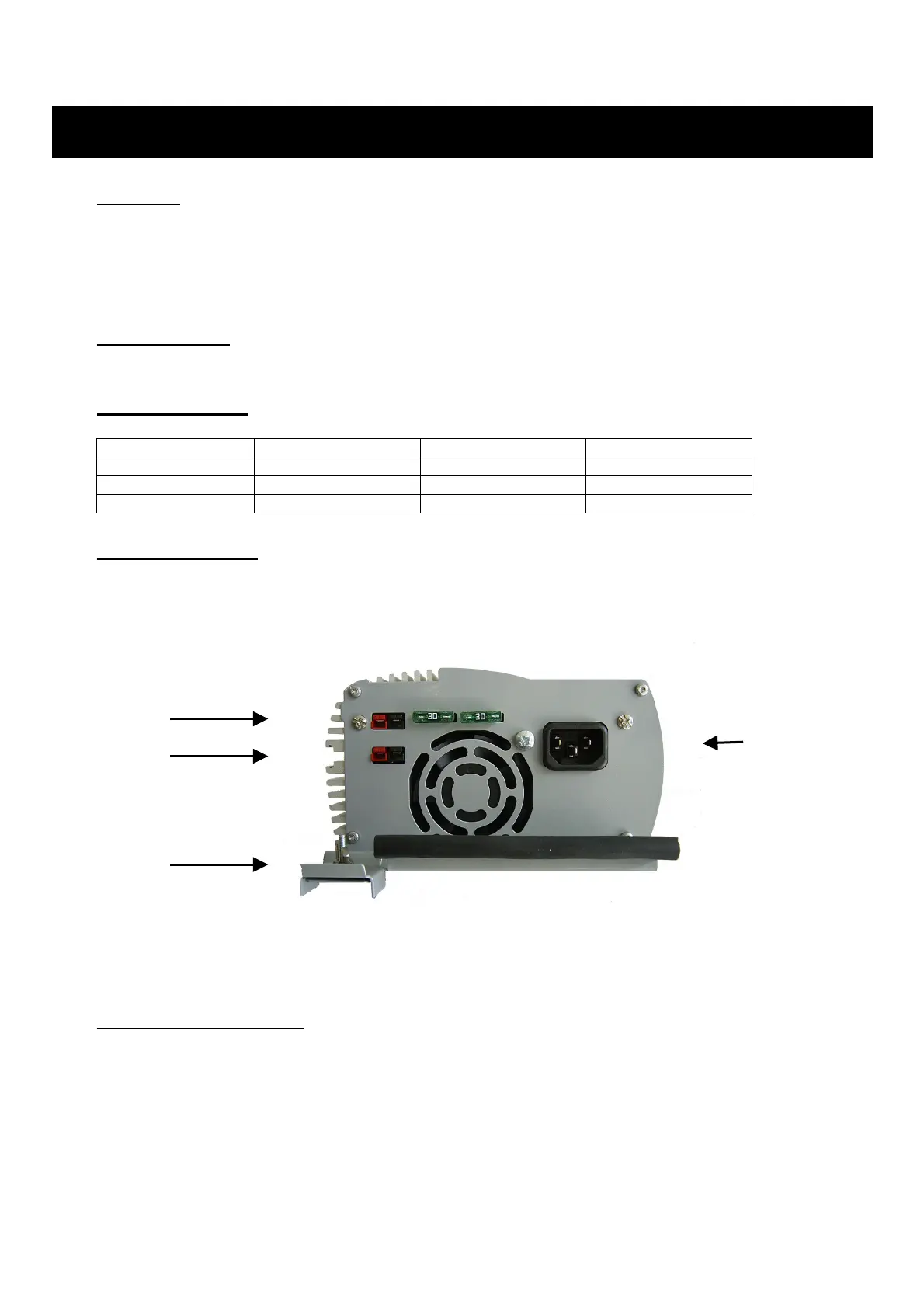

GETTING STARTED
Before connecting the unit to the mains please connect the charge cables to the unit. Cable #1 goes into
position 1, cable #2 goes into position 2 (PRO 25-2 only). Make sure the cables are connected nice and
tidy under the strain relieve shown in position 3 using the bracket with the wing nut. Plug in the main lead
at position 4.
1. Charge cable nr. 1
2. Charge cable nr. 2 (PRO 25-2 only)
3. Strain relieve
4. AC power cable
FITTING INSTALLATIONS
The charger can be mounted vertically or horizontally, while maintaining a free area of 15 cm (6'') all
around.
This allows an optimal cooling with air circulation. Two screw holes 170 mm apart with a 4 mm diameter
are provided for mounting the charger.
As mounting positions think of vehicle lifts, wall and / or tool trolleys.
SPECIFICATIONS
1
2
3
4
