This section will help you get to your destination while letting you know what test leads you may need
when you arrive. The test leads are represented by symbols for their connectors.

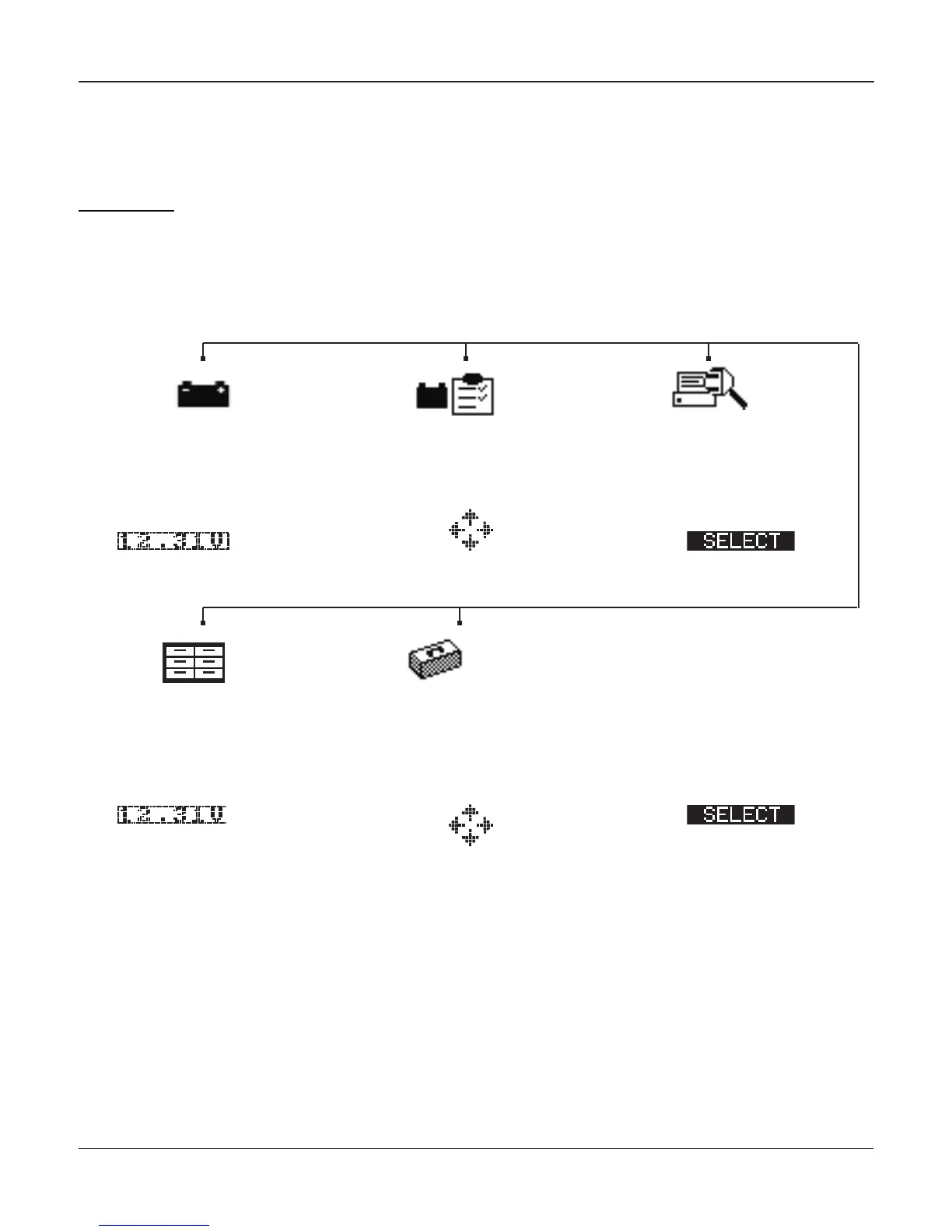

Main Menu
The Main Menu is the starting point for all tools and utilities, which are depicted as icons. Some icons
lead directly to the function they represent, while others are menu icons that lead to two or more
functions. Menu icons are marked here with an asterisk (
*
) and are mapped on the following pages.
MAIN MENU (Screen 1)
MAIN MENU (Screen 2)
Tests a battery using
the battery information
you select in a series of
screens.
Includes a test counter,
data transfer utility, the
EXP software version
and serial number.
Enables you to view your
stored test results and
print them to an optional
IR printer.
Nine utilities, many of
which customize your
user interface.
*
*
*
(voltmeter reading) an icon
(voltmeter reading)
an icon
Chapter 2: Description
Quality Control Mode for
testing Stock batteries or
compound batteries.
To Next Page
