Midtronics GRX-5100 Quick Training Guide

GRX-5100
Click the tabs at the top and side to view each section
HEV Workstation Cable ConnectionsCharging Process

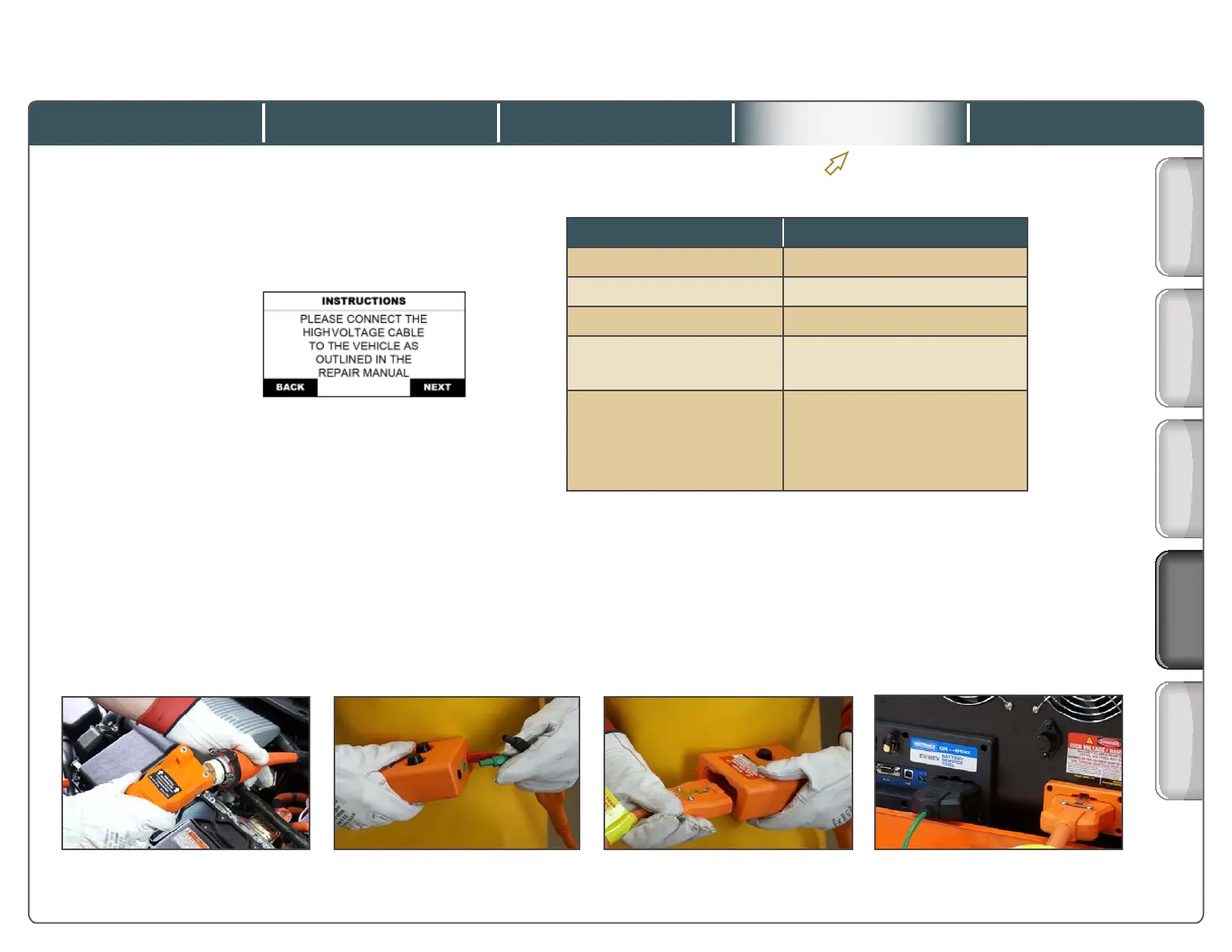

When this
screen appears:
1. Following Repair
Manual instructions,
connect the vehicle-
specic high voltage
cable to the vehicle.
2. Connect the vehicle-
specic high voltage
cable to the high
voltage fuse box.
3. Connect the
universal cable (Cable
“V”) to the high
voltage fuse box.
4. Connect Cable “V”
to the GRX-5100.
High Voltage Cables
Verify Frame Wire Ground
Low Voltage
Cable
High Voltage
Cables
Cabling
Overview
High Voltage Cable Use for:
A Prius (‘01-‘03)
B Prius (‘04-‘09)
C Highlander Hybrid (‘06-‘10)
D
Avalon Hybrid (‘13-‘16)
Camry Hybrid (‘07-‘16)
E
Prius (‘10-‘15)
Prius V (‘12-‘16)
Prius C (‘12-‘16)
Highlander Hybrid (‘11-‘16)
Battery Charge
Active Test
Toyota NiMH Battery Rescue Charging with the GRX-5100
Quick Training Guide QT015A
Interlock
Cover
19 of 21
©Toyota Motor Sales, U.S.A., Inc., December 16, 2015
