Midtronics GRX-5100 Quick Training Guide

GRX-5100
Click the tabs at the top and side to view each section
HEV Workstation Cable ConnectionsCharging Process

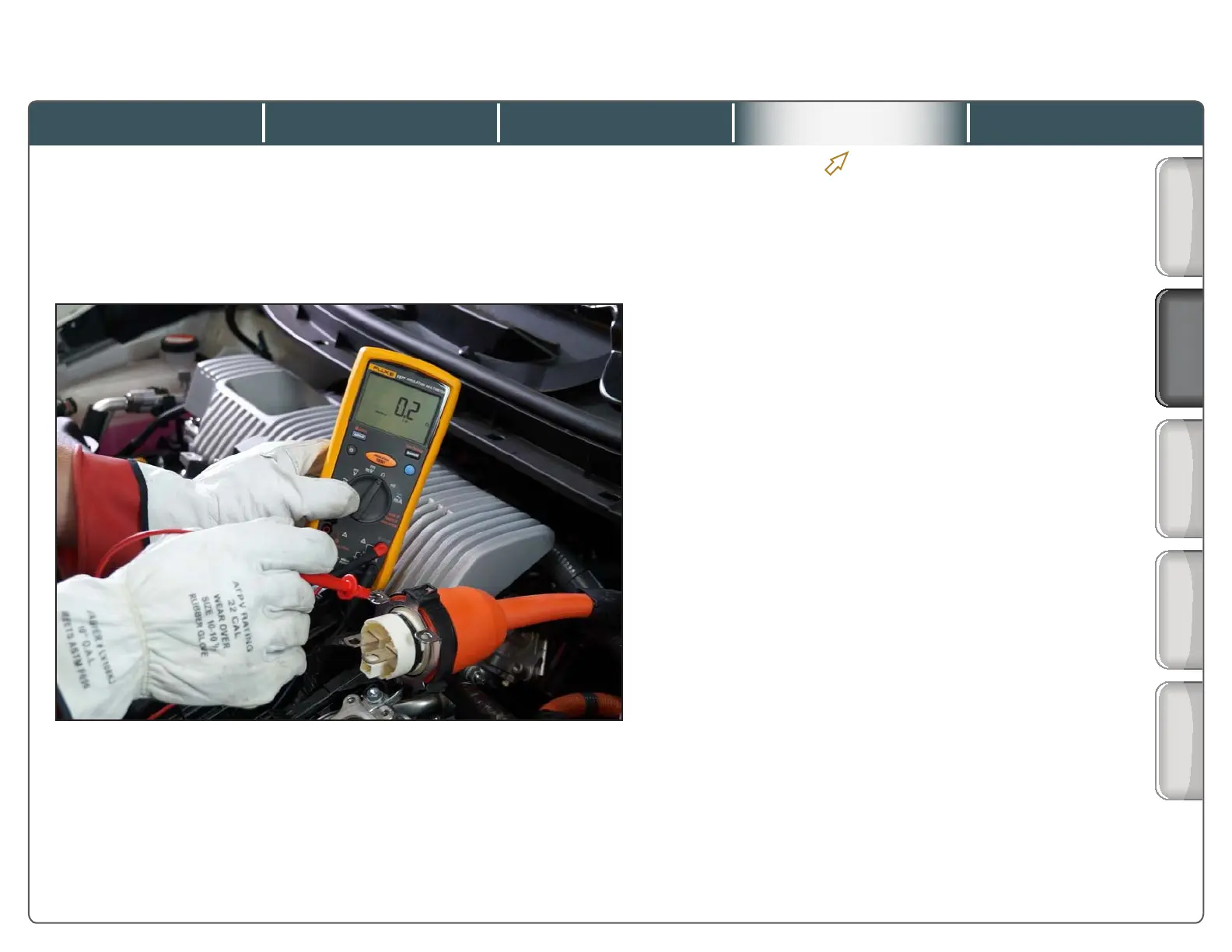

Verify Frame Wire Ground
After disconnecting the frame wire and
before connecting cables, the Repair Manual
instructs you to measure the resistance
between the ground connection on the frame
wire and body ground. If the shield line of
the frame wire is not securely connected to
body ground, the error message “Battery not
detected” or “HV bonding test failed” may
appear, and the GRX-5100 will not operate.
If the resistance is greater than 1 Ω, follow
the inspection procedure outlined in the
Repair Manual.
Verify Frame Wire Ground
Low Voltage
Cable
High Voltage
Cables
Cabling
Overview
Battery Charge
Active Test
Toyota NiMH Battery Rescue Charging with the GRX-5100
Quick Training Guide QT015A
Interlock
Cover
17 of 21
©Toyota Motor Sales, U.S.A., Inc., December 16, 2015
