8
2: In Vehicle Test JDT-1
In Vehicle Test
Use In Vehicle Test to perform Battery Tests
on in-vehicle batteries using test parameters
determined by vehicle VIN or year, make, and
model of the vehicle being tested. A System
Test function is also available.
NOTE: An In Vehicle Test test will always associate the
in-vehicle battery with the VIN of the vehicle in which
it is installed.
At any time during the test tap < to return to the previous
screen or to return to the Main Menu.
Battery Test
1. At the Main Menu tap In Vehicle Test. The Acquire VIN
screen is displayed.

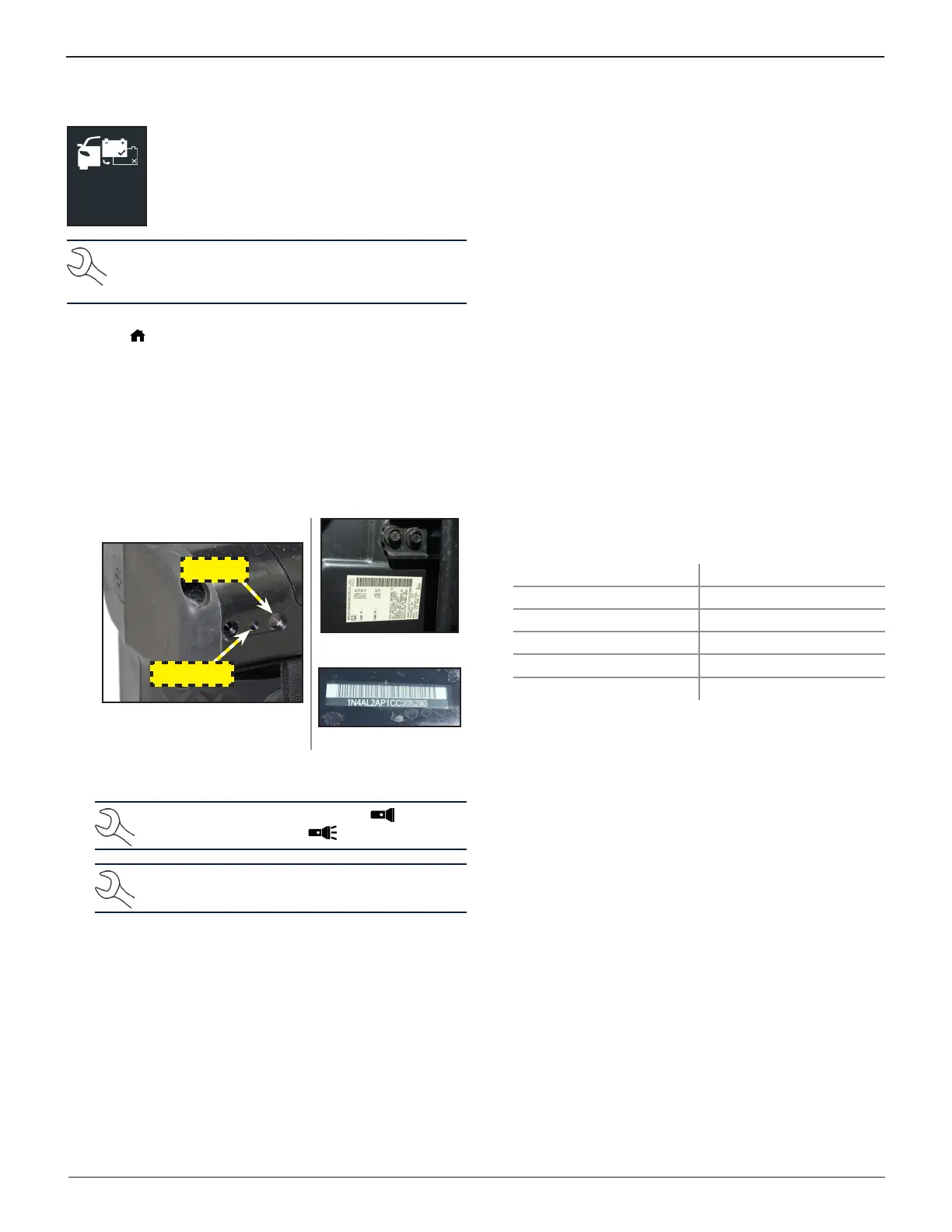

2. Use the built-in camera on the back of the tester to scan
the VIN bar code.
Fill the viewnder with the VIN bar code.
Flashlight
Camera
Tester (Rear View)
Drivers Door Frame
Windshield
The VIN bar code usually located in the right corner of the
front windshield or on the driver’s side door frame.
NOTE: In low light situations, tap to turn on
the tester ashlight. Tap to turn it o.
NOTE: Refer to Appendix B for recommended
scanning procedures and VIN scanning help.
Manual Entry: Use the on-screen keypad to manually type
the 17-digit VIN and tap Next.
1 2 3 4 5 6 7 8 9 0
W E R T Y U P
A S D F G H J K L
Z X C V B N M
Back Next
The displayed digit counter will count up the alphanumeric
characters as they are being entered on the keypad.
YMM: Use the scrolling lists to select the year, make, and
vehicle model. If applicable, a list of optional original
equipment is displayed.
Use Manual Entry if the battery being tested is not listed.
Tap > to continue to the Edit Battery Information screen.
3. Connect the tester clamps to the battery.
4. The Edit Battery Information screen displays vehicle and
battery information based on the VIN.
If the displayed information is correct, tap Next to begin
the Battery Test. Tap on the corresponding box to edit the
parameter information.
Battery Application VIN
Battery Type Vehicle Year
Test Location Vehicle Make
Rating Units Vehicle Model
Battery Rating Vehicle Technology
Battery Installation
See Appendix A at the back of this manual for complete
parameter descriptions.
5. Use the Viewing Window to align the temperature sensor
over the battery and tap Next. The test begins once the
temperature is successfully captured.
2: In Vehicle Test
