Miele CS 1013-1

Safety distances
33

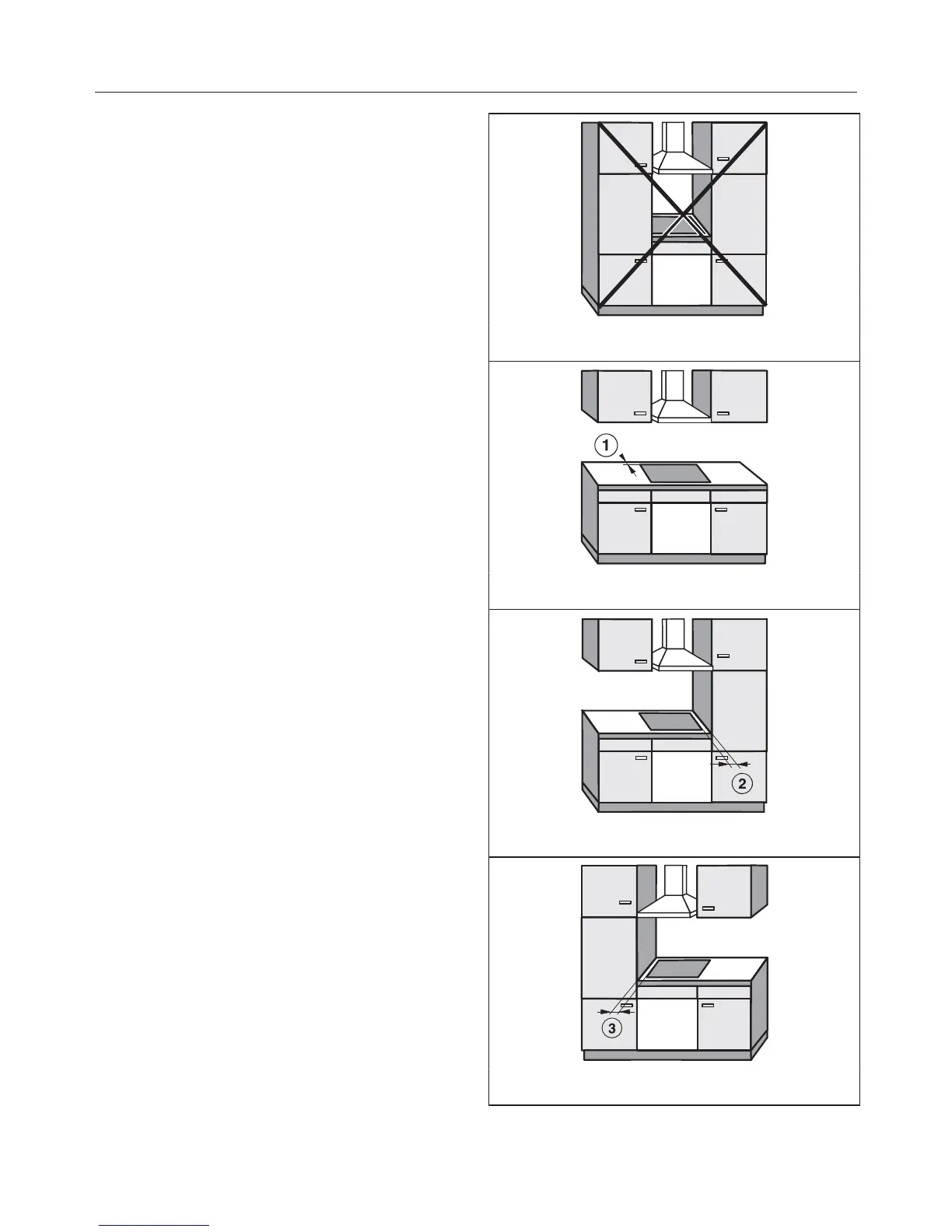

Safety distances to the sides
and back of the hob
The CombiSet may be installed with a
wall at the rear and a tall unit or wall to
one side (right or left) (see illustrations).
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance between the
worktop cut-out and a tall unit or wall to
the right or left of it:
40 mm CS 1212 / CS 1212-1
CS 1221 / CS 1221-1
CS 1234 / CS 1234-1
CS 1223
CS 1222
50 mm CS 1112
CS 1122
CS 1134
CS 1326
CS 1327
CS 1411
100 mm CS 1012 / CS 1012-1
CS 1013 / CS 1013-1
150 mm CS 1421
CS 1312
CS 1322
200 mm CS 1034 / CS 1034-1
250 mm CS 1011 / CS 1021
CS 1018 / CS 1018 G
CS 1028 G
Not allowed
Recommended
Not recommended
Not recommended
