Conversion to another type of gas
54

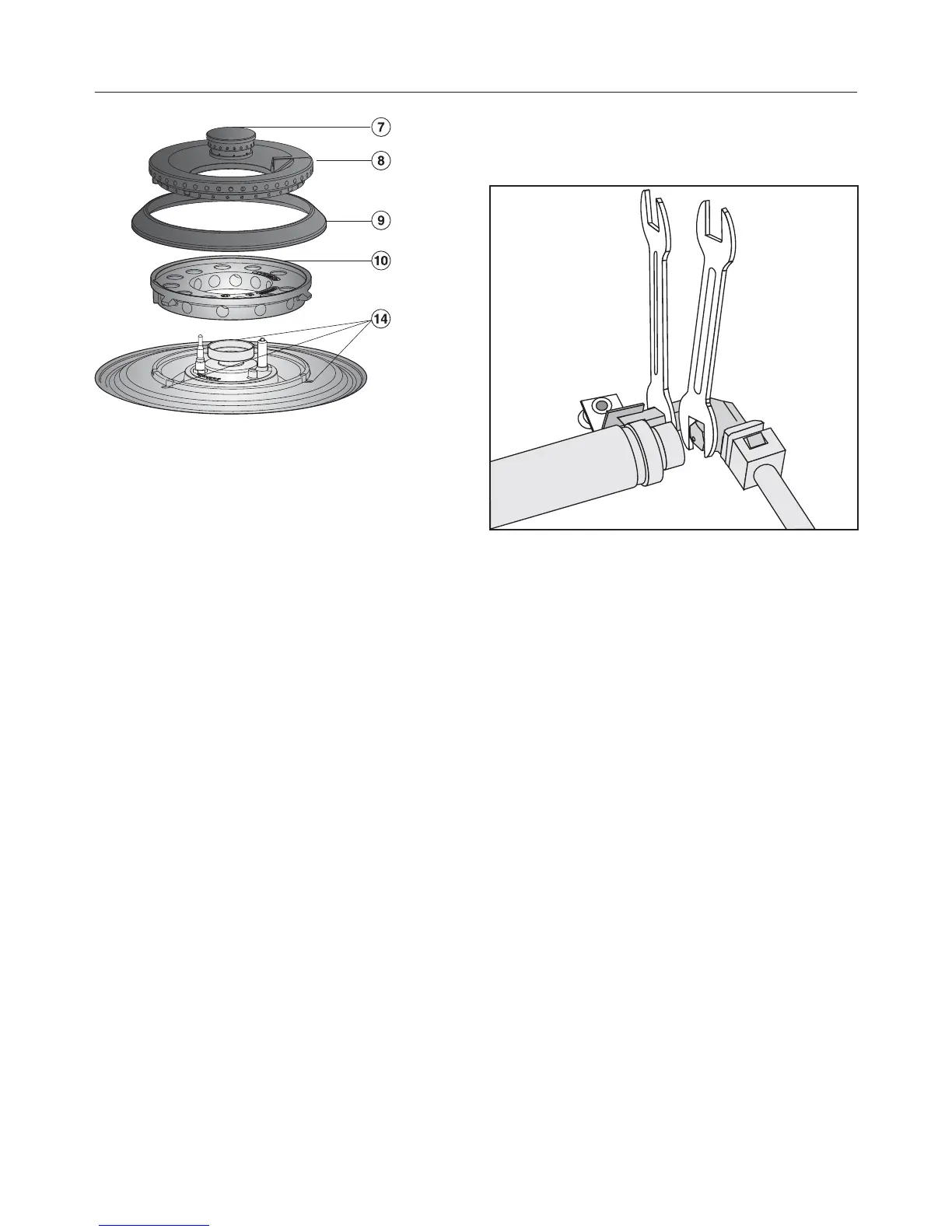

Remove the burner caps, burner
ring and burner head.
Undo the screws.
Pull the control knob off.
Changing the main jet
Lift the top of the appliance off.
Unscrew the main jet anti-clockwise
from its housing with an SW10
spanner while counterholding it with
an SW13 spanner (see picture).
Screw in the new main jet, once again
using the spanner to counterhold the
jet housing.
