Miele CS1028 - Page 30

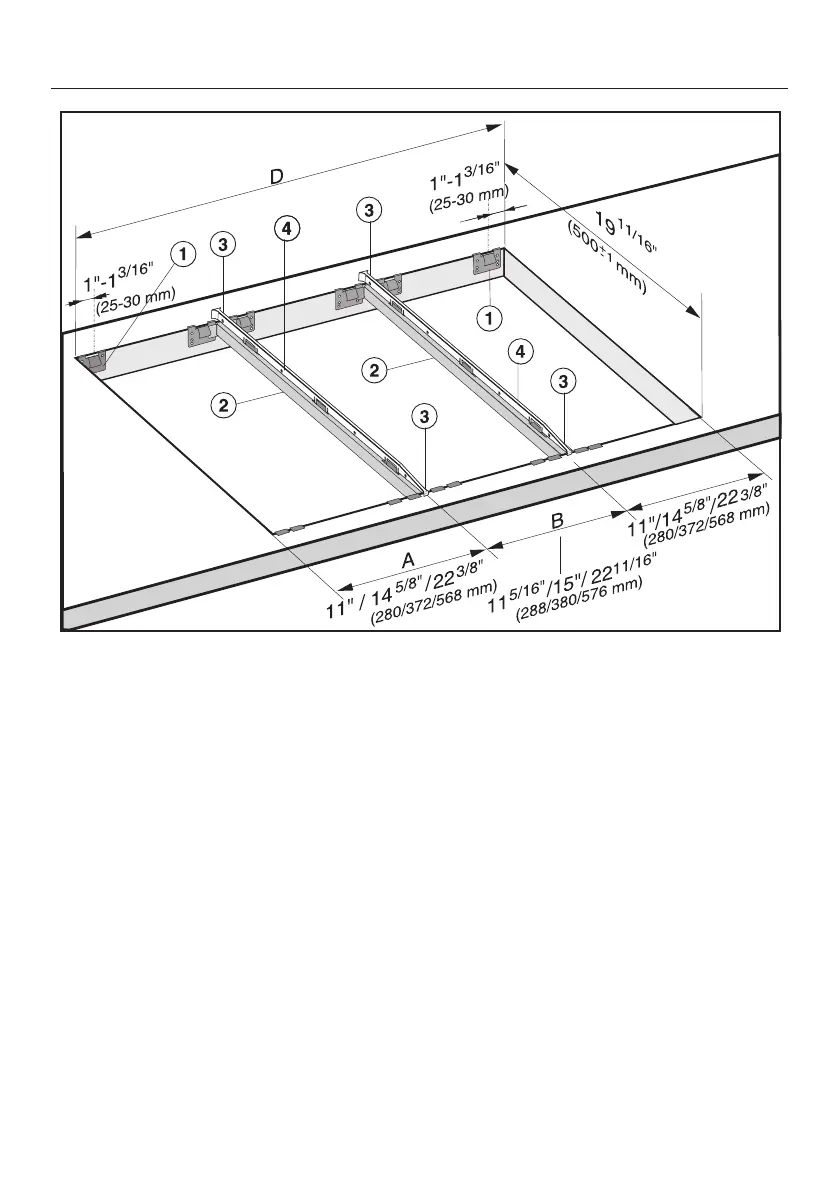

a Spring clips
b Support bars
c Space between support bar and countertop
d Sealing strip
The illustration represents the attachment of spring clips a and support bars b
for 3 appliances.
An additional support bar is required for each additional appliance. The position
for attachment of an additional support bar depends on the width of appliance B.
Installation
30
