If the furniture unit walls are 19 mm thick you will need to
drill four holes in the sides for securing the machine. To
mark the position of these holes:
–
Align the machine in the niche. Screw the side socket
screws inside the machine in a little so that they make
indents in the side walls and then unscrew them again.
–
Take the machine out of the niche and drill ø 4.5 mm holes,
2 mm deep where you made the indentations.
^
Connect the machine to the electricity supply.
^
Push it all the way into the niche until you feel resistance.
^
Open the machine door and partially tighten the side
socket screws.
^

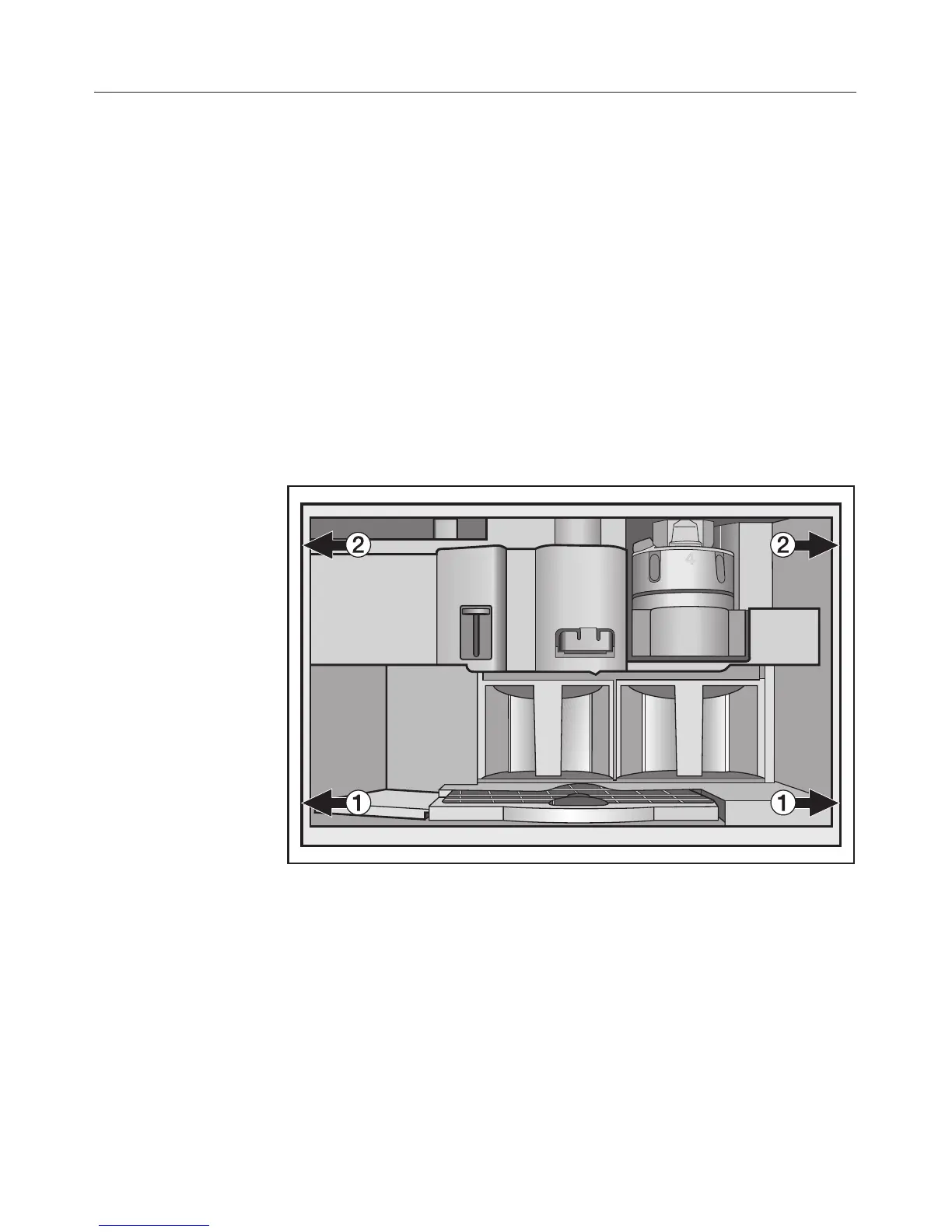

Carefully turn the lower socket screws a to centre the
machine in the niche.
^
Tighten both upper socket screws b by hand to secure the
machine in the unit. Do not overtighten them.
Installation
