Miele DG 4080 Technical Information

Technical Information
10
DG 408x Steam Ovens

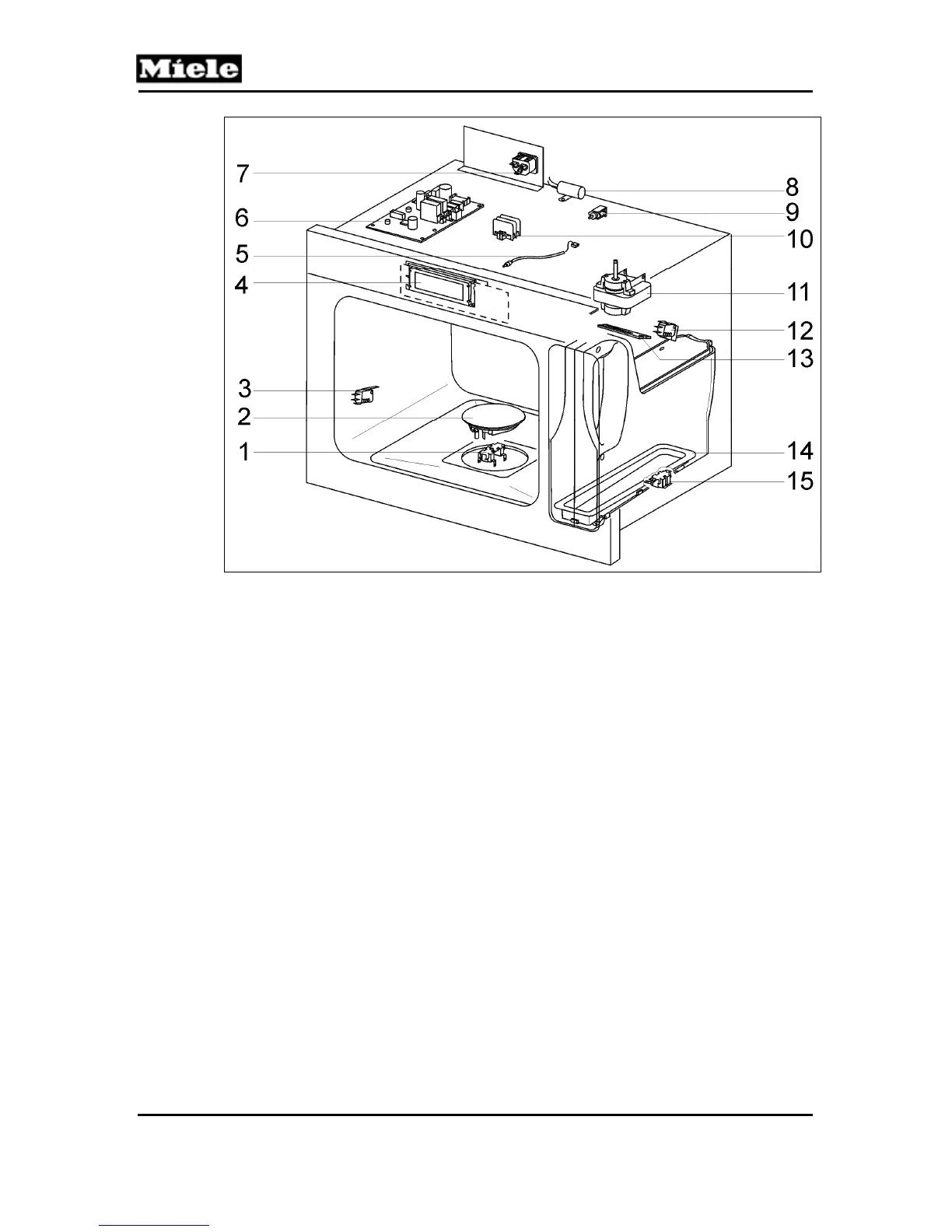

Figure D-4: DG 4082 Electrical Components
1
(2F1, 2F8) Floor heater temperature regulator (239°F) and
temperature limiter (402°F)
2
(R28) Floor heater
3
(S4) Door contact switch
4
(2N1) Control/selection electronic EW
5
(R30/10) PT1000 temperature sensor
6
(1N1) Power electronic
7
(X2) Power socket
8
(Z2) Interference suppression capacitor
9
(Y56) Release element
10
(X7) Plug strip
11
(M2/1) Cooling fan
12
(S84) Steam generator switch
13
(S12) Water level float switch (PCB)
14
(1R25, 2R25) Steam generator heater
15
(1F1, 1F8) Steam generator temperature regulator (410°F)
and temperature limiter (568°F)
