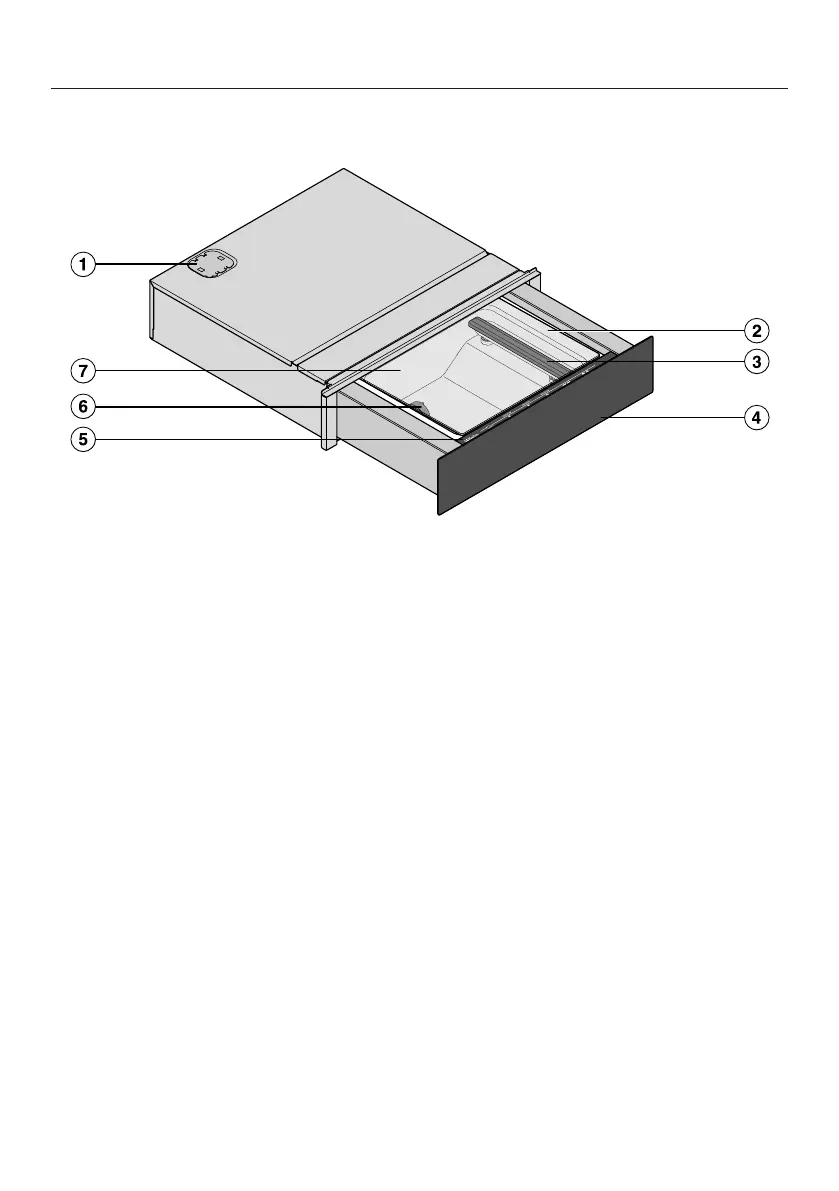

Overview
15
EVS 7010
a
Air filter cover (see “Installation”)
b
Glass lid with chamber seal
Push down on the little black triangle to close the glass lid.
c
Sealing bar in the vacuum chamber and counterpressure bar on the inside of
the glass lid
d
Drawer front with Push2open mechanism
The drawer can be opened and closed by lightly pressing the drawer front.
e
Controls and indicators
f
Vacuum pump air-intake valve/vacuum-adapter connection
g
Vacuum chamber
