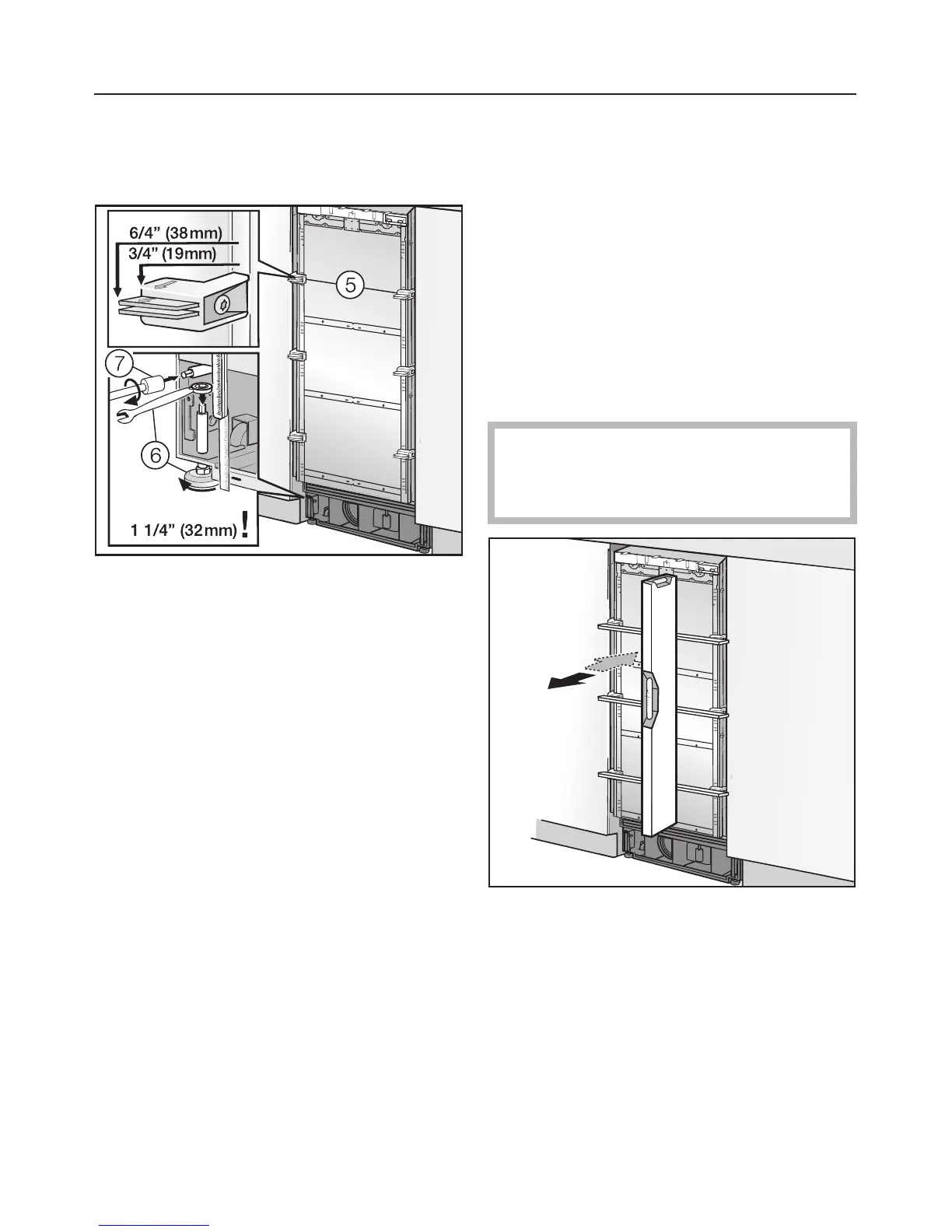

Aligning the appliance
^
Align the appliance with the custom
front.
The installation aids e have been
designed for the following total
thicknesses of custom doors:
–
3
/
4
" (19 mm)
–1
1
/
2
" (38 mm)
Be sure to take into account the
possible differing thicknesses of the
custom door that is to be fitted
subsequently.
The height-adjustable feet at the front
and rear can all be adjusted from the
front.
–
Front: with an open-ended wrench
½" (SW 13).
The feet can be adjusted from the
top and bottom f.
–
Rear: with a
5
/
16
" (8 mm) hex nut
driver via flexible shaft g.
A mark is located on the appliance
base and is used as a standard gauge
for height adjustment. When adjusting
the height, align this mark at 1
1
/
4
"
(32 mm) above the floor.
^
Place a marking-out level over the
installation aids e on the door.
^
Unscrew the height-adjustable feet
until the mark on the base has
reached the indicated guide
dimension 1
1
/
4
" (32 mm).
It is very important to comply with
this dimension for the subsequent
alignment of the custom door fronts.
^
Align the custom door with a level.
Installing the appliance
65
