Attaching the frame and the
shelf
For
3
/
4
" (19 mm) thick custom doors:
^ Slide the cover frame onto the
Ice/Water Dispenser and press until it
is flush with the door surface (be sure
the word "TOP" on the cover frame is
upward).

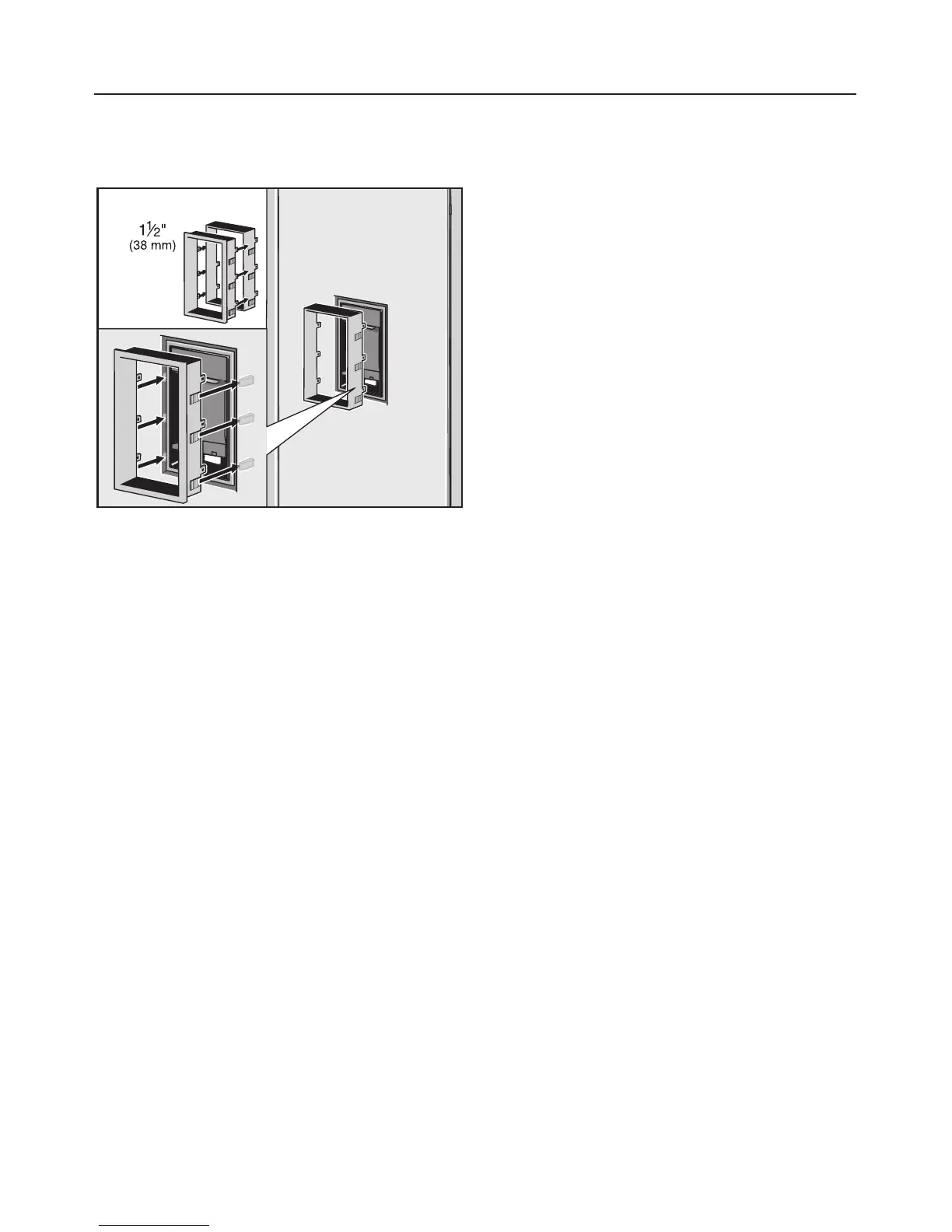

For 1
1
/
2
" / (38 mm) thick custom doors:
^
Press the extension frame onto the
cover frame.
^
Slide the cover frame onto the
dispenser an press until the it is flush
with the door surface (be sure the
word "TOP" on the cover frame is
upward).
^
Insert the cover frame.
Installing the appliance
75
