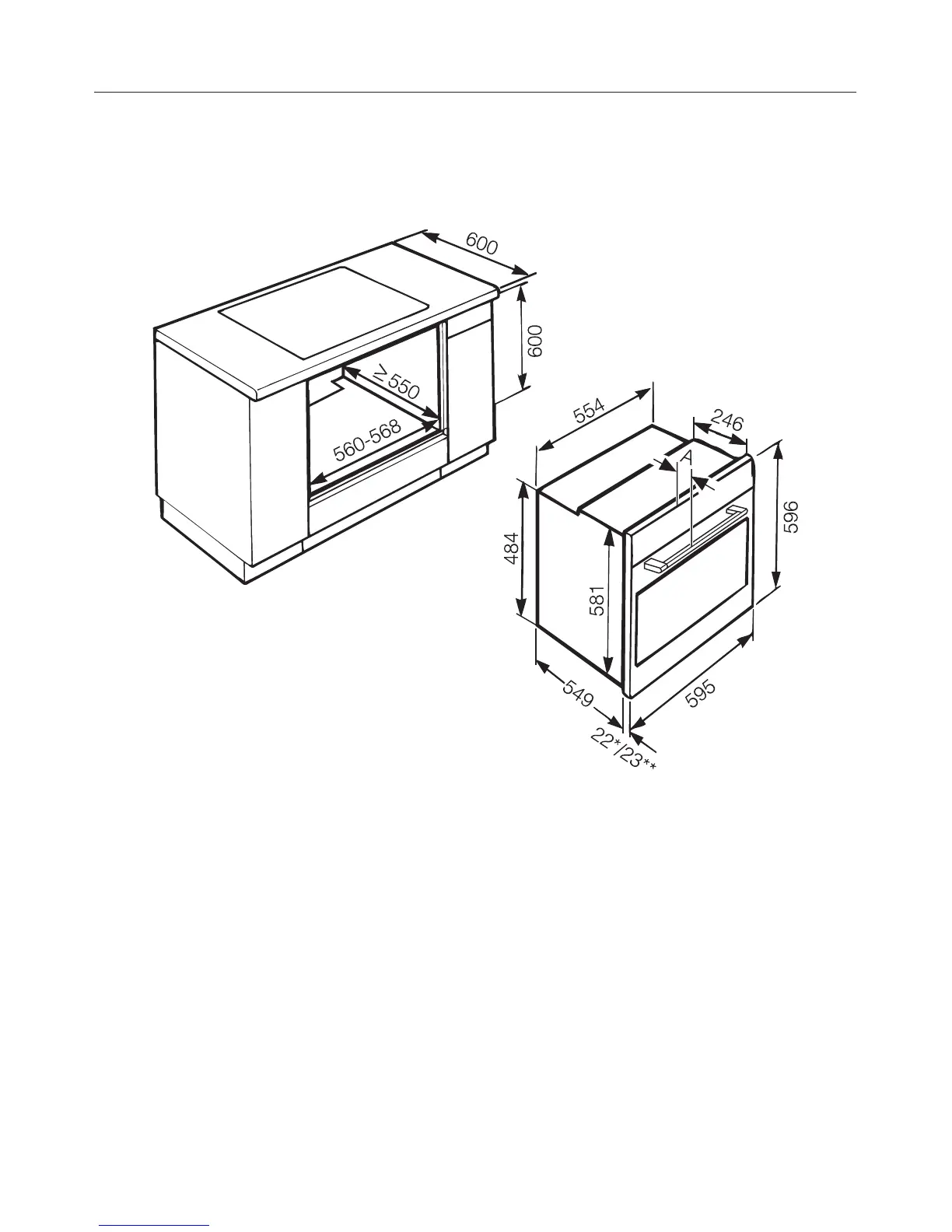

Appliance and niche dimensions

Dimensions are given in mm.

Installation in a base unit

A H21xx: 45 mm

H22xx: 42 mm

* Ovens with glass front

** Ovens with metal front

Building-in diagrams
