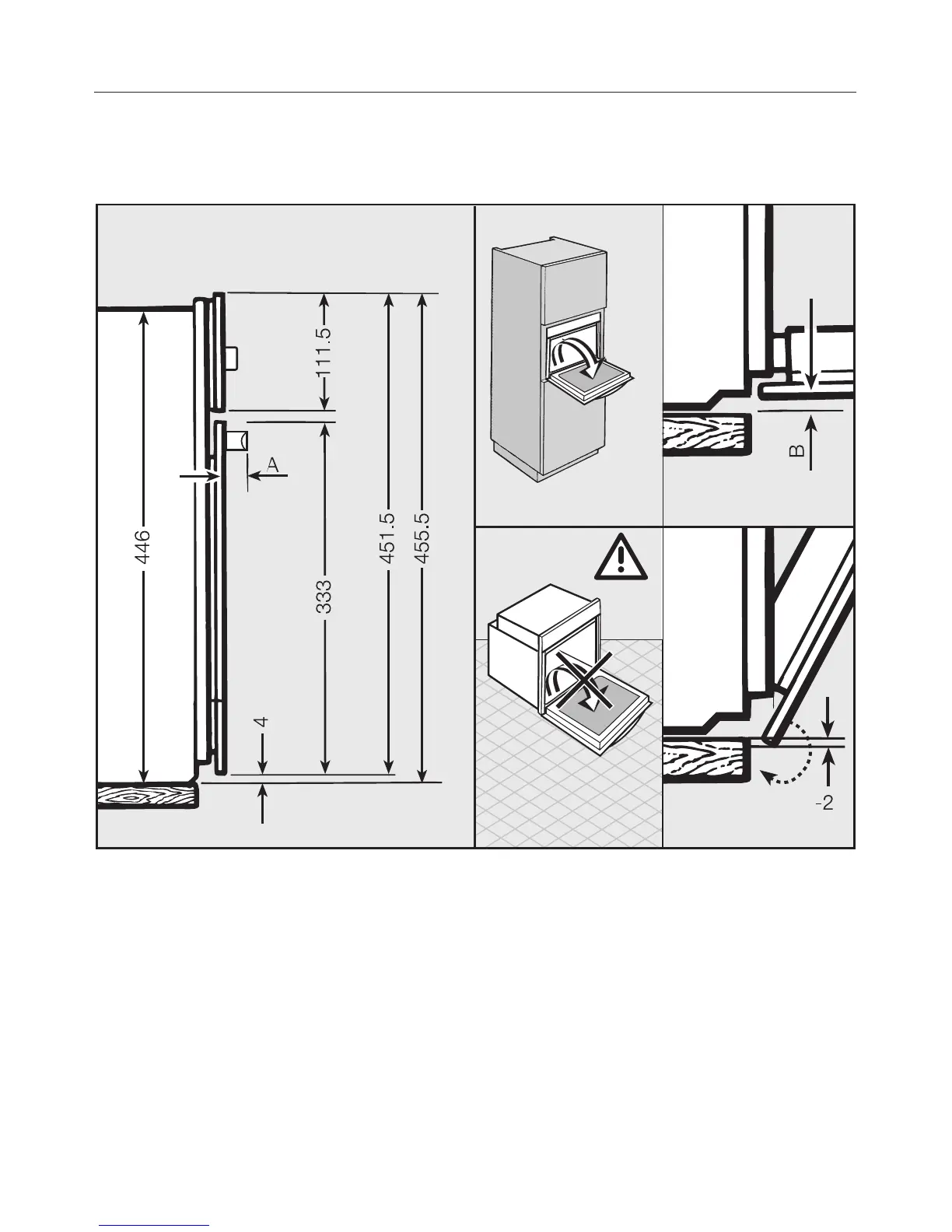

Front dimensions

Dimensions are given in mm.

A H6500BM: 45 mm

H6600BM: 42 mm

B Ovens with glass front: 2.2 mm

Ovens with metal front: 1.2 mm

Building-in diagrams

138
