Installation diagrams H6770BM, H6870BM
134

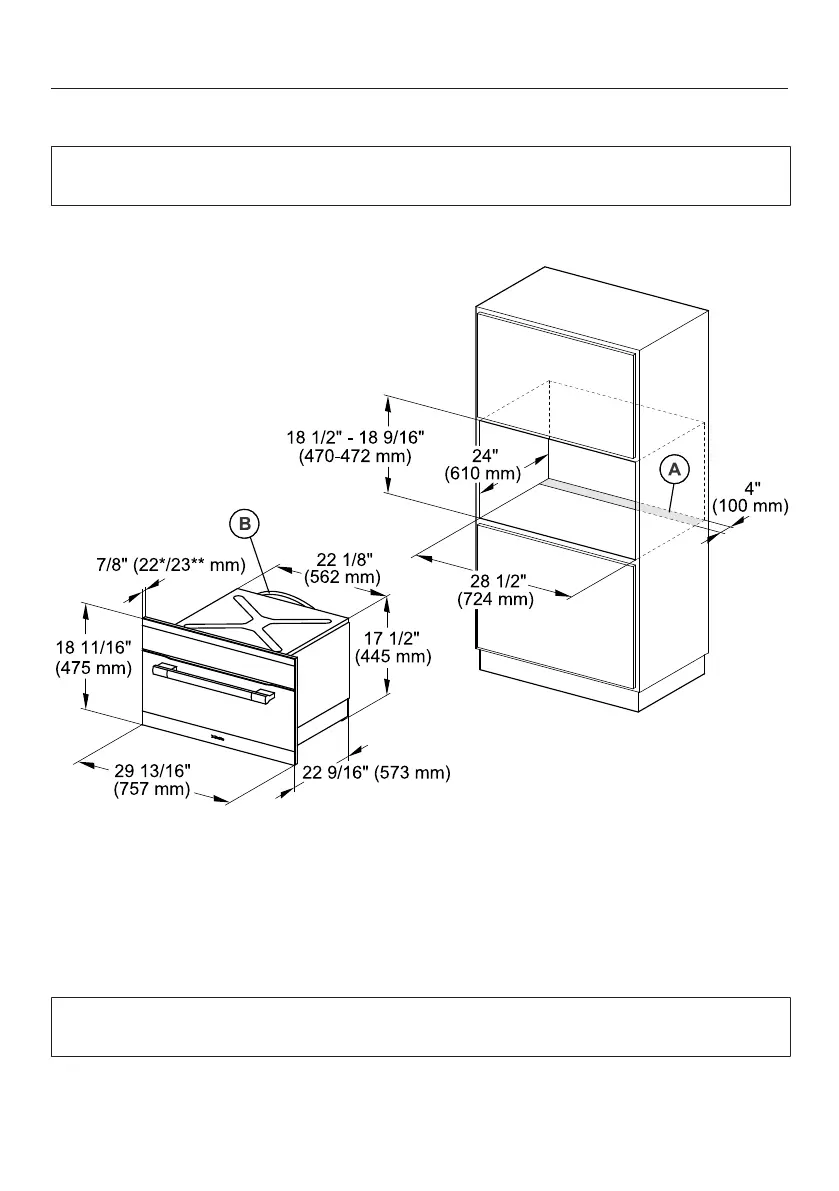

Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.
Installation in a tall cabinet
Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Depending on the model, the oven front may differ from the one shown the
drawing. Current specifications can be found on the Miele website.
