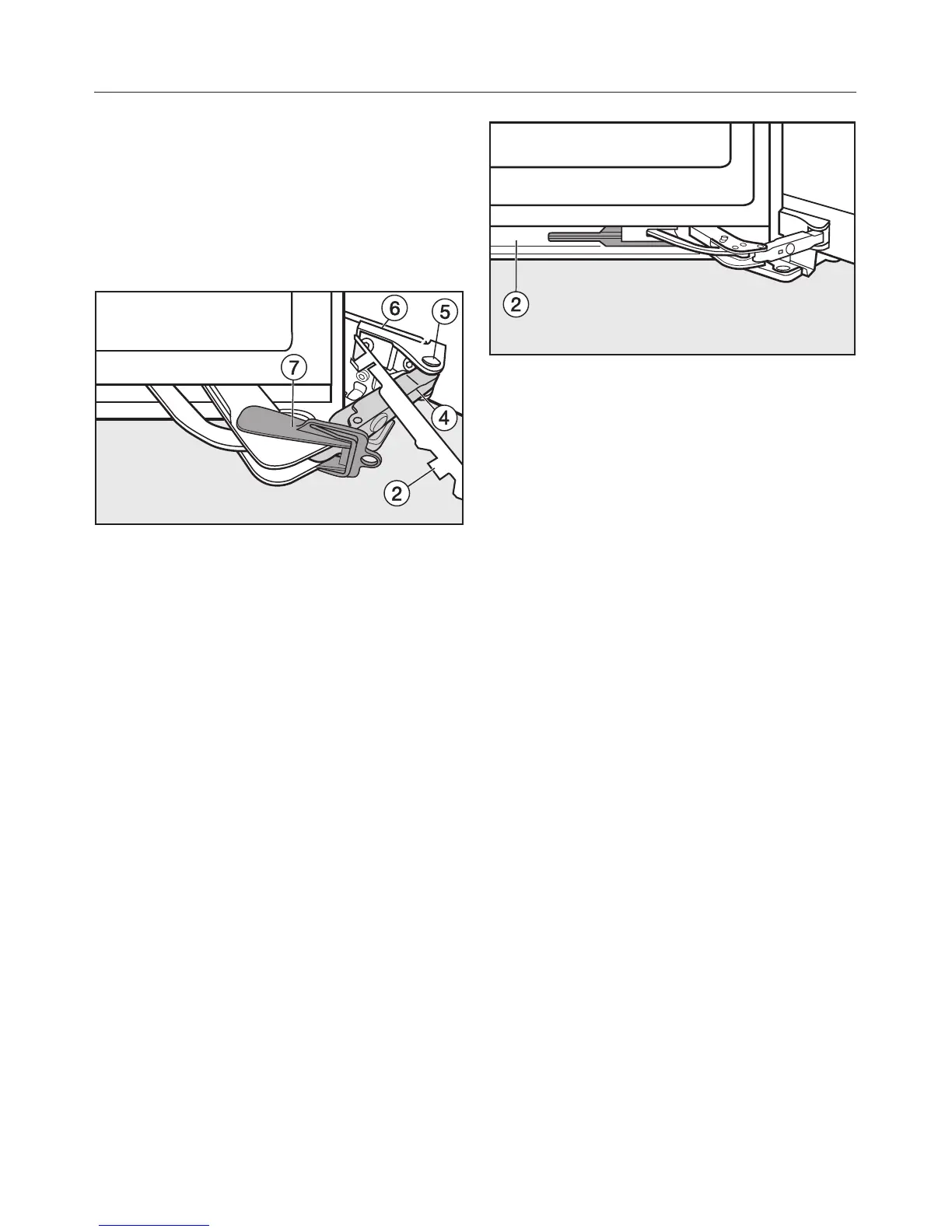

The screw holes on the left and right
must line up perfectly.
^
First screw the SoftClose mechanism
onto the appliance side, then onto
the handle side c, pushing it firmly
towards the appliance.
^ Attach panel b to SoftClose
mechanism bracket d.
^ Align bracket d to the hinge plate,
and insert pin e from above so that
the right angle fits into the recess.
^ Click cover f back into place.
Make sure that cover f fits properly so
that the door can be closed without
hindrance and the pin is secured.
^
Remove retaining clip g.
^
Replace panel b onto the SoftClose
mechanism from above, clicking it
back into place first at the bottom
and then at the top.
^ Close the appliance door.
Changing the door hinging
59
