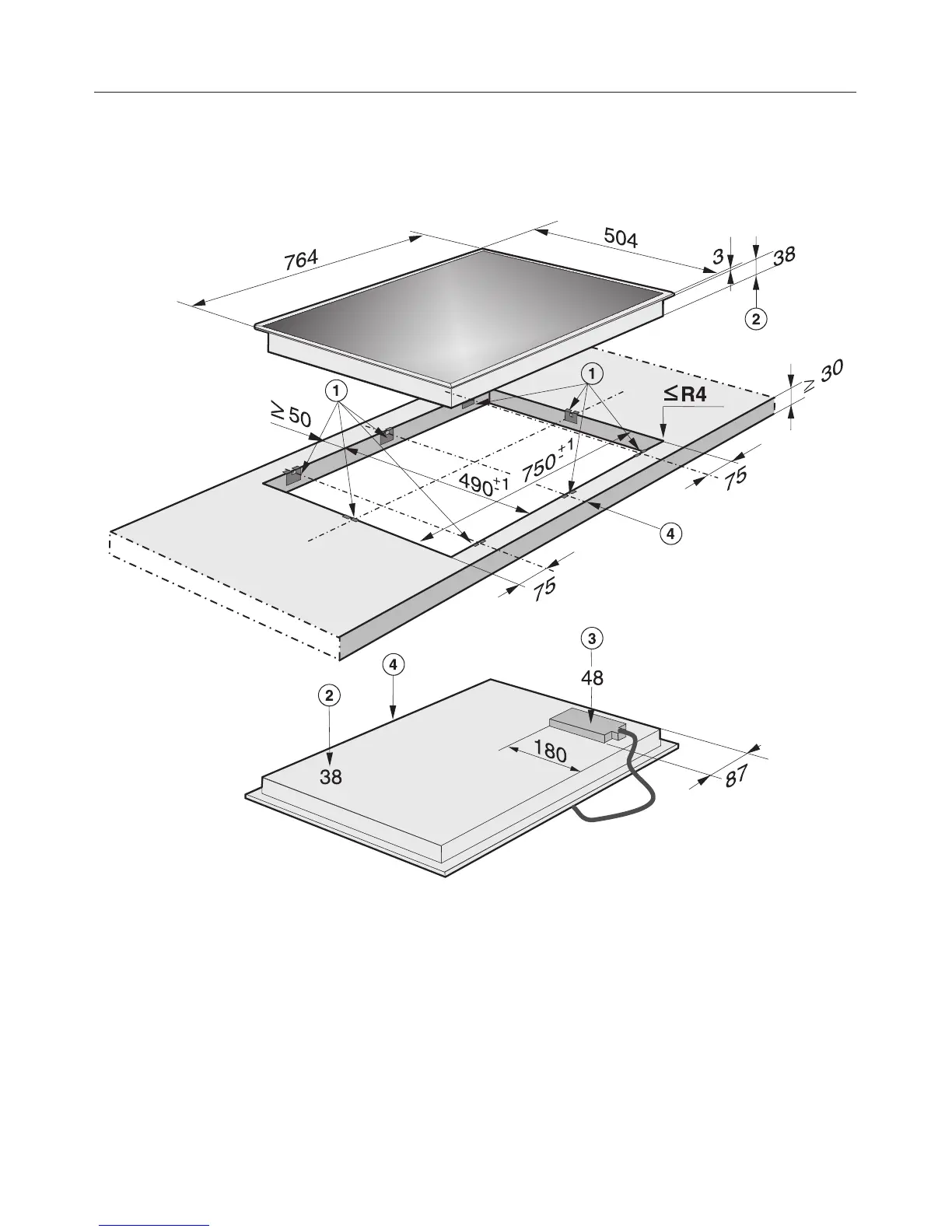

Building-in dimensions for KM 537 / KM 551
(Hobs with frame)
a Spring clamps
b Building-in depth
c Building-in depth for mains connection box
d Front
Installation
55
