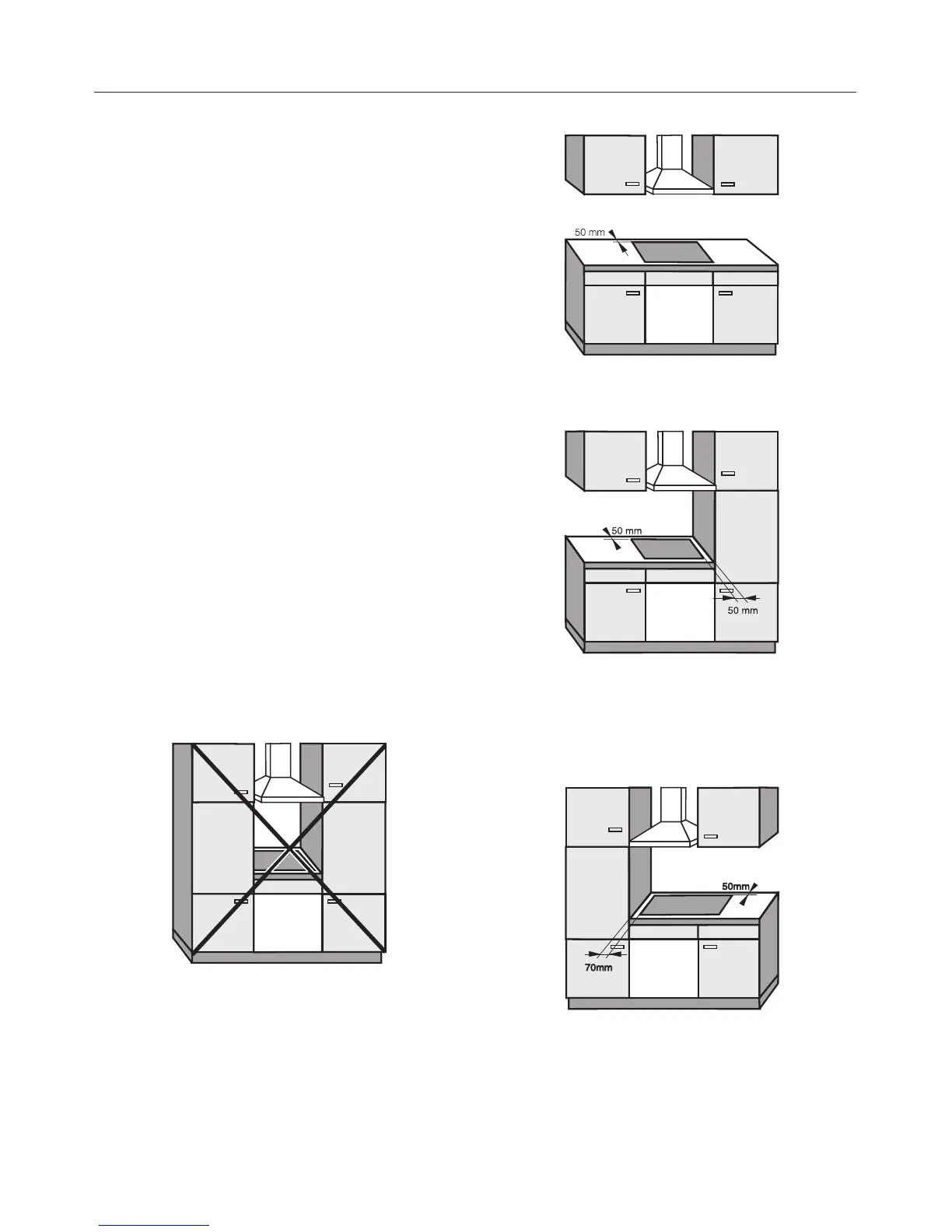

Safety distances to the sides of the
hob
Ideally the hob should be installed with
plenty of space on either side. There
may be a wall at the rear and a tall unit
or wall at one side. On the other side,
however, no unit or divider should stan
-
d higher than the hob (see illustrations).
The following minimum distances
should be adhered to for safety
reasons:
–
50 mm to the right or left of the
worktop cut-out to the nearest piece
of furniture (e.g. tall unit).
KM 543/547 requires a 70 mm gap to
the left.
– 50 mm from the worktop cut-out to
the rear wall.
not allowed
recommended
not recommended
KM 543 / KM 547
not recommended
Installation
52
