Flush-fitted hobs

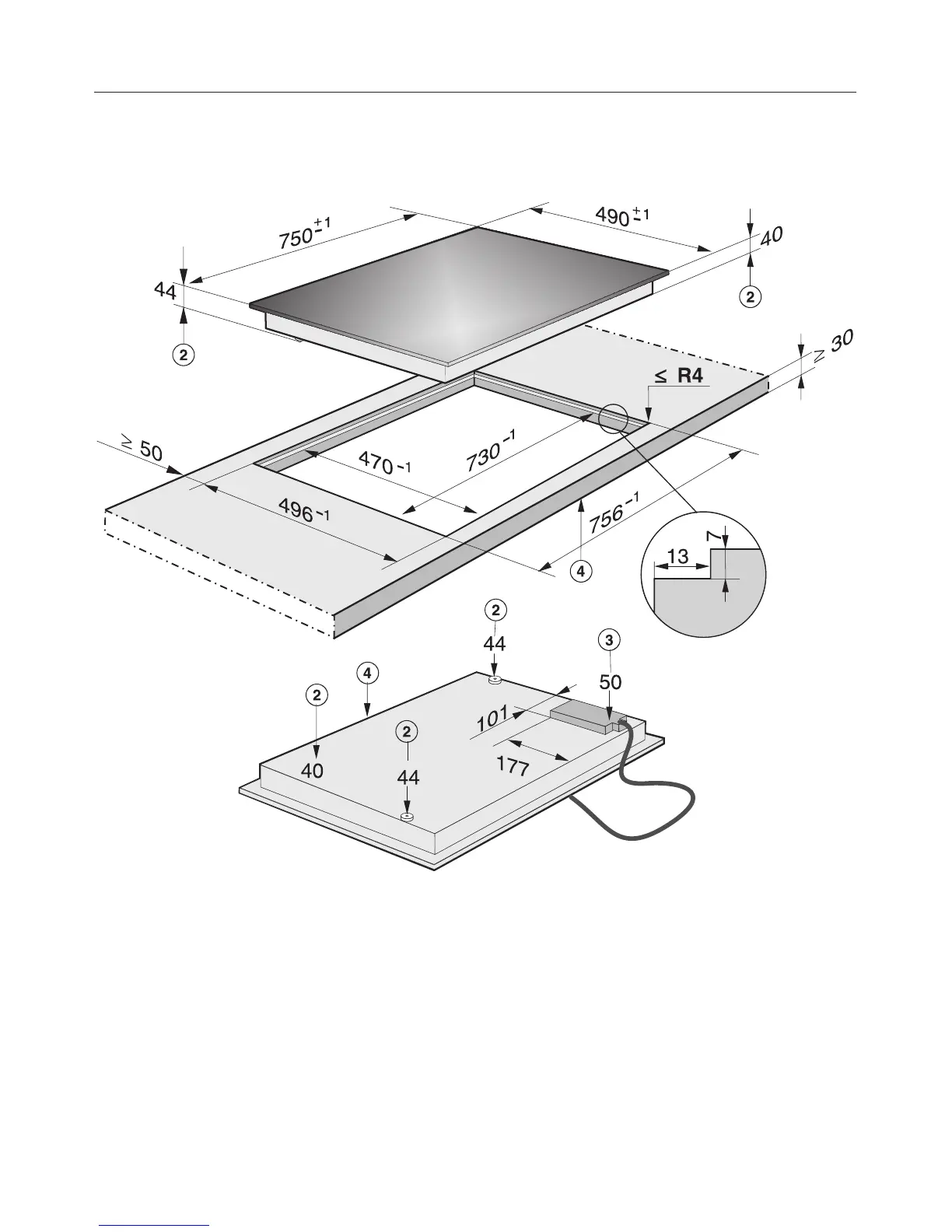

Building-in dimensions for KM 552
N.B. Cut-out dimensions 470
-1
and
730
-1
are for the step required in
granite and marble worktops only
It is essential to follow the detailed
drawings on the next pages too.
Installation
