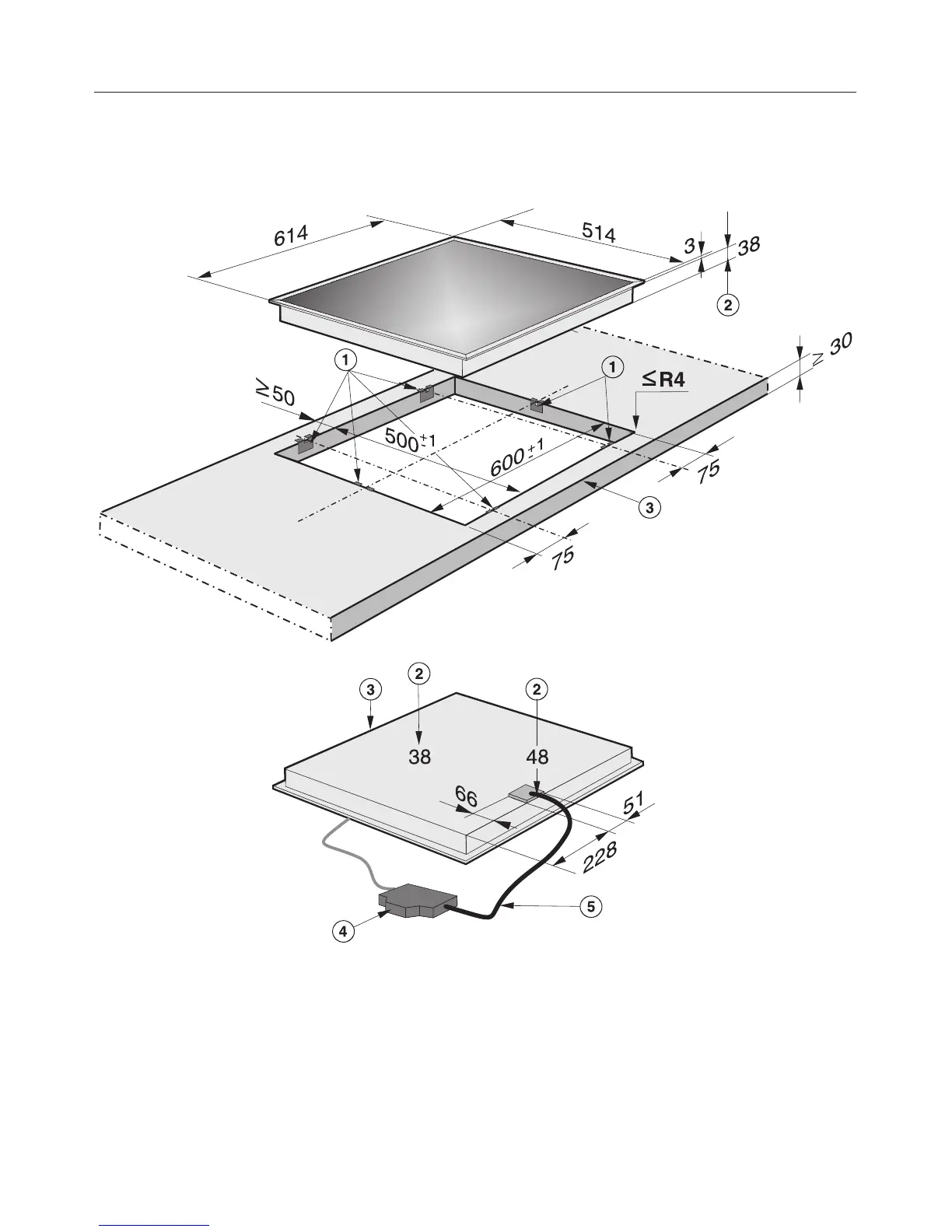

Building-in dimensions for KM 547
(Hob with frame)
a Spring clamps
b Building-in depth
c Front
d Mains connection box with mains connection cable, L = 1440 mm
e Wiring harness, L = 1550 mm
Installation
57
