Solid wood and tiled worktops
a Wooden frame (13 mm, to be
provided on site)
e Worktop
f Hob
g Gap
Corner radius of the tiled worktop ß R4
^

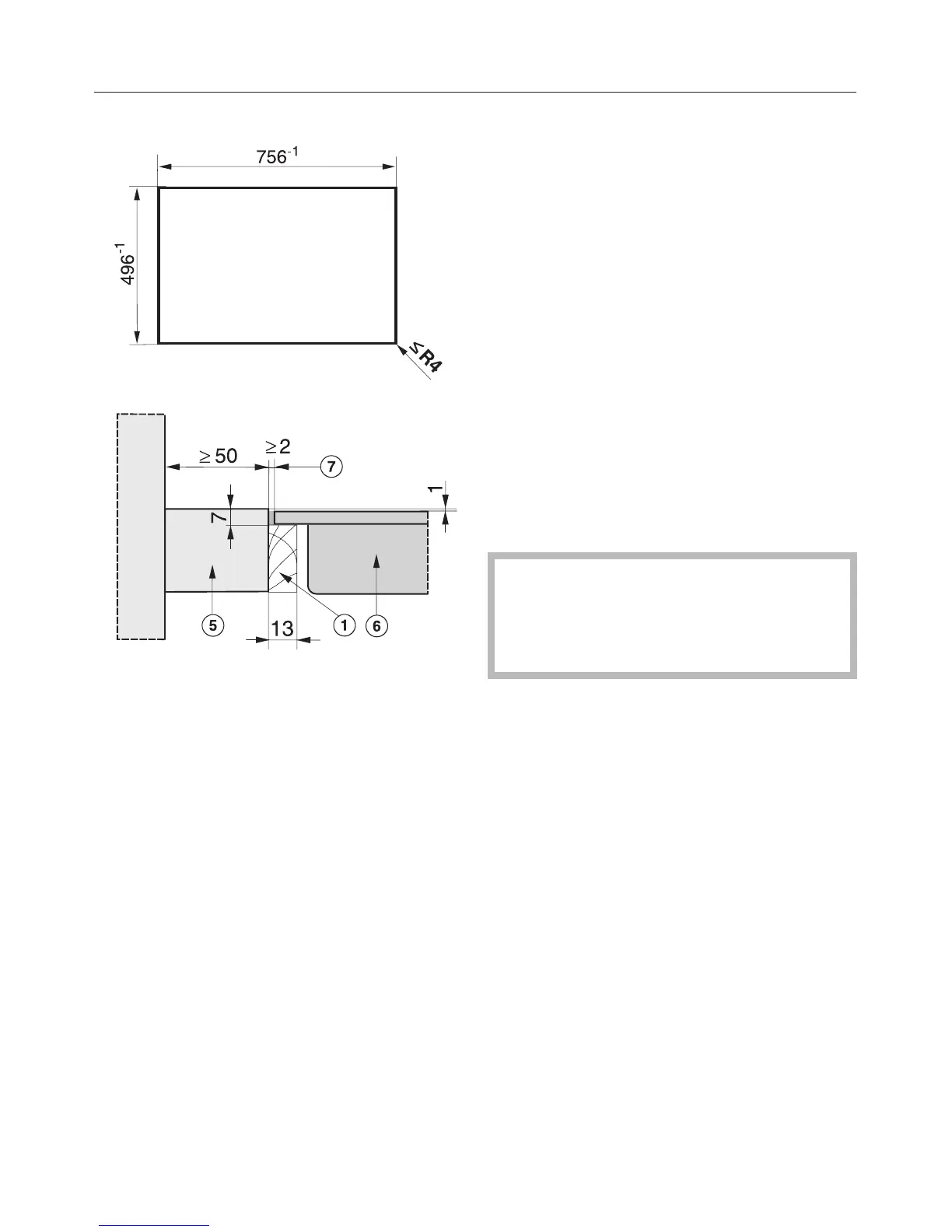

Make the worktop cut-out as shown
in drawings.
^
Fix the wooden frame a 7mm below
the top edge of the worktop (see
diagram).
^
Feed the hob connection cable down
through the cut-out.
^
Centre the hob f in the cut-out.
^
Connect the hob to the mains.
^
Check that the hob works.
^
Seal the remaining gap g with a
silicone sealant that is heat-resistant
to at least 160 °C.
As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, gap g can
vary (min. 2 mm).
Installation
70
