Miele KM 552 - Hob with Frame or Bevelled Edge

Hob with frame or bevelled edge

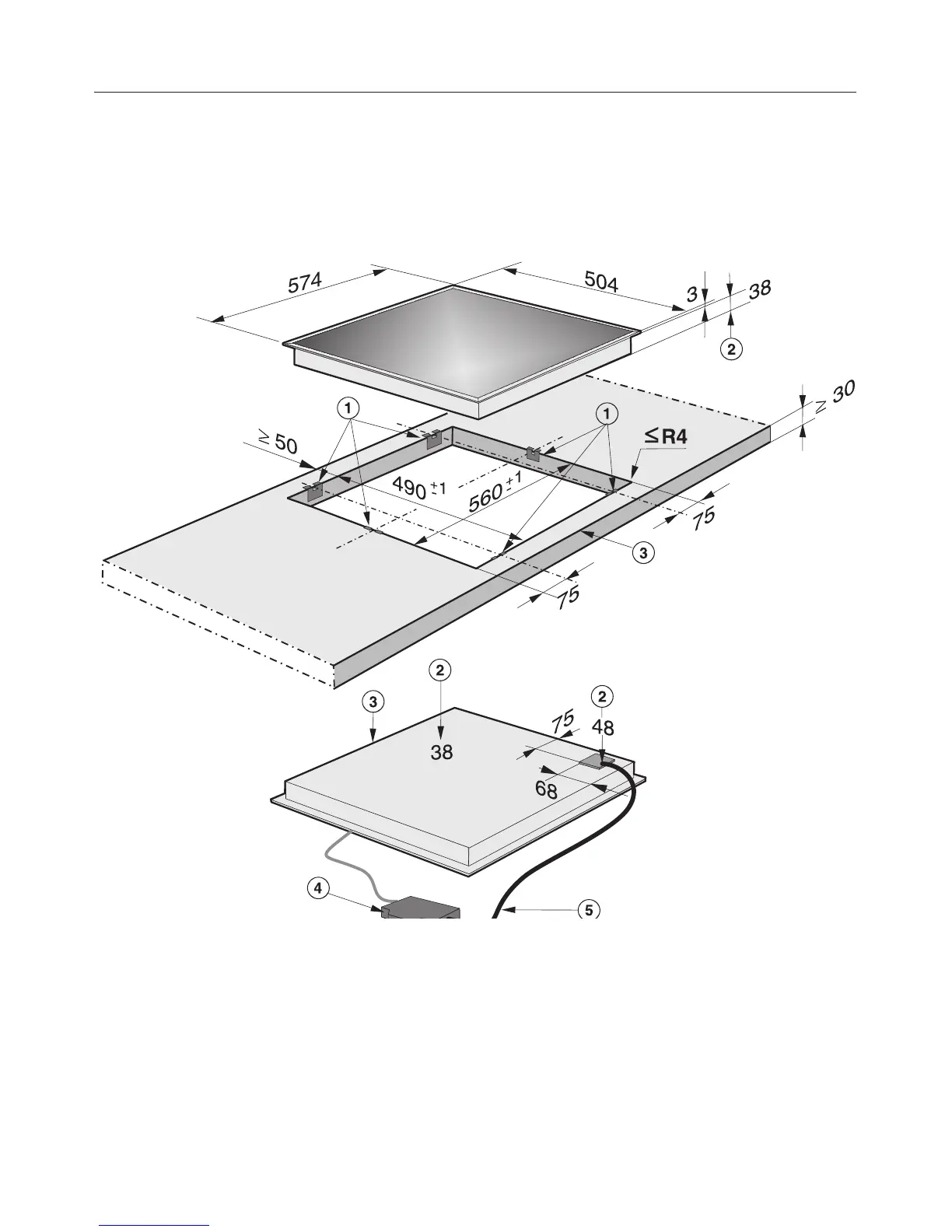

Building-in dimensions for KM 530 / KM 544 / KM 545
(Hobs with frame)
a Spring clamps
b Building-in depth
c Front
d Mains connection box with mains connection cable, L = 1440 mm
e Wiring harness, L = 1550 mm
Installation
54
