Miele KM 5752 - Flush-fitted hobs

Flush-fitted hobs

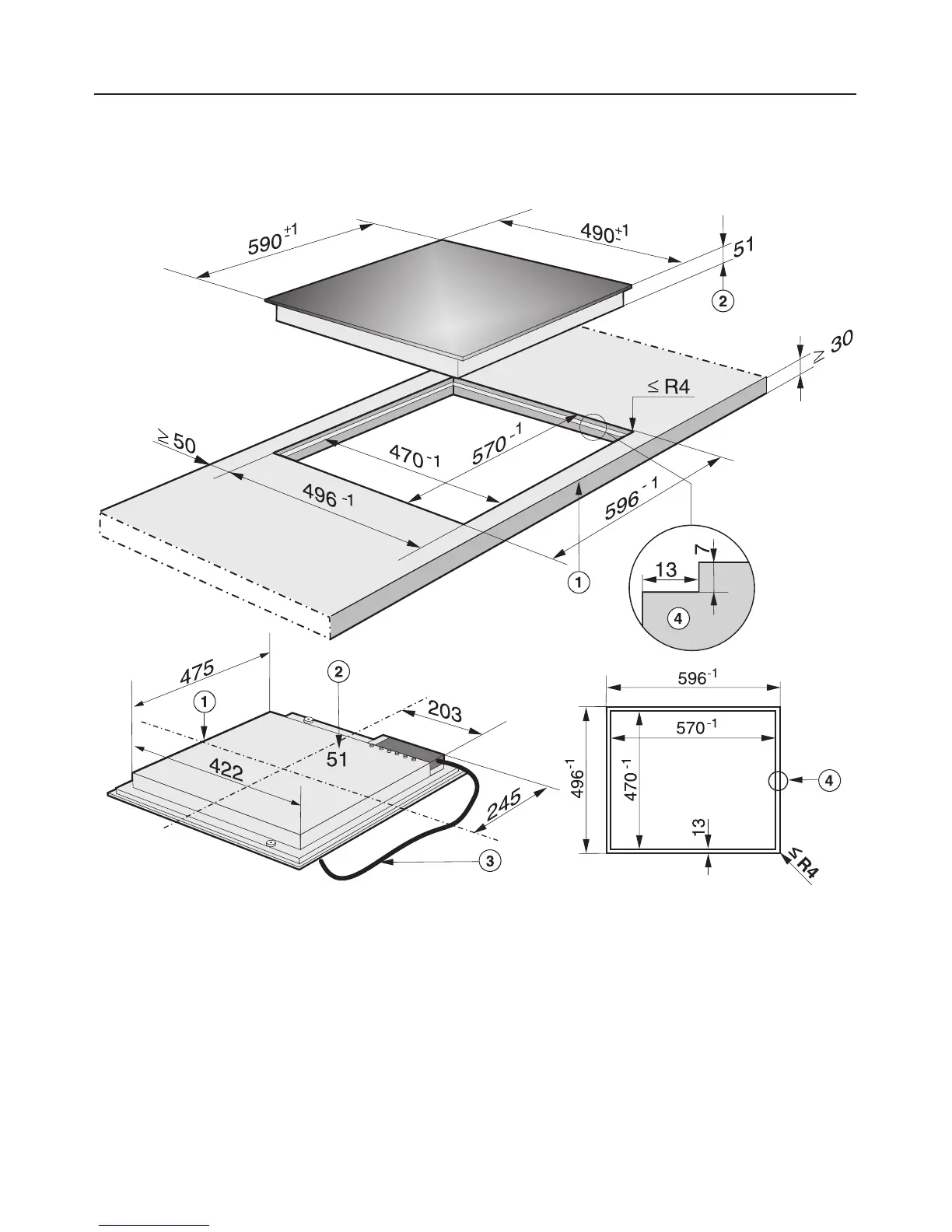

Building-in dimensions for KM 5737
a Front
b Building-in depth
c Mains connection cable,
L = 1440 mm
d Stepped cut-out for granite or marble
worktops
Cut-out dimensions for granite or
marble worktops.
Please take careful note of the inset
diagram.
Installation
64
