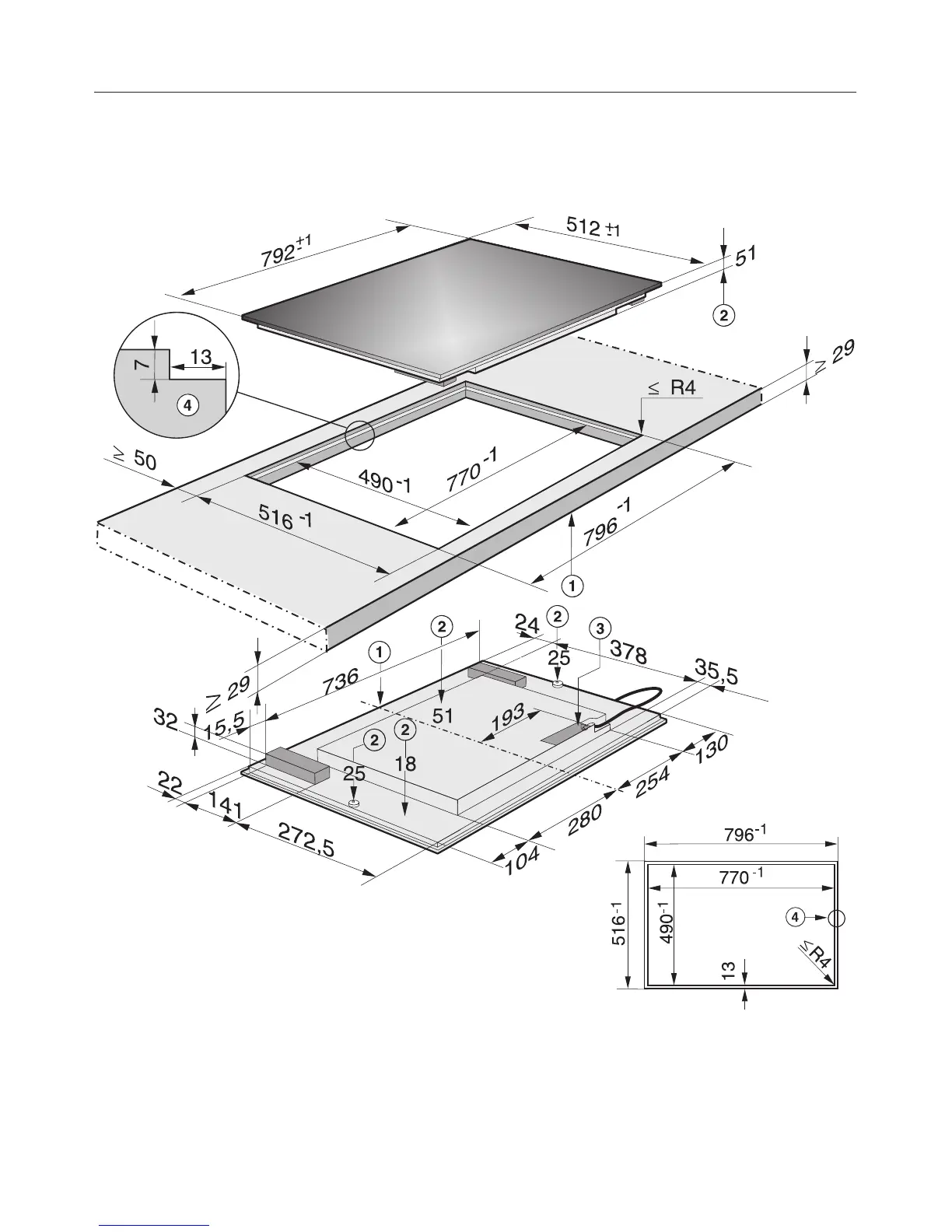

Building-in dimensions
KM 6364
a Front
b Casing depth
c Mains connection box
Mains connection cable, (1440 mm
long) is supplied separately
d Stepped cut-out
Flush-fitted hobs
53
