Miele KM 6839 - Side and Back Safety Distances

Safety distances
59
Safety distances to the sides
and back of the hob
Ideally the hob should be installed with
plenty of space on either side. There
may be a wall at the rear or a tall unit or
wall on one side (right or left) (see
illustrations).
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance between the
worktop cut-out and a wall or tall unit to
the right of it:
50mm.
Minimum distance between the
worktop cut-out and a wall or tall unit to
the left of it:
50mm.

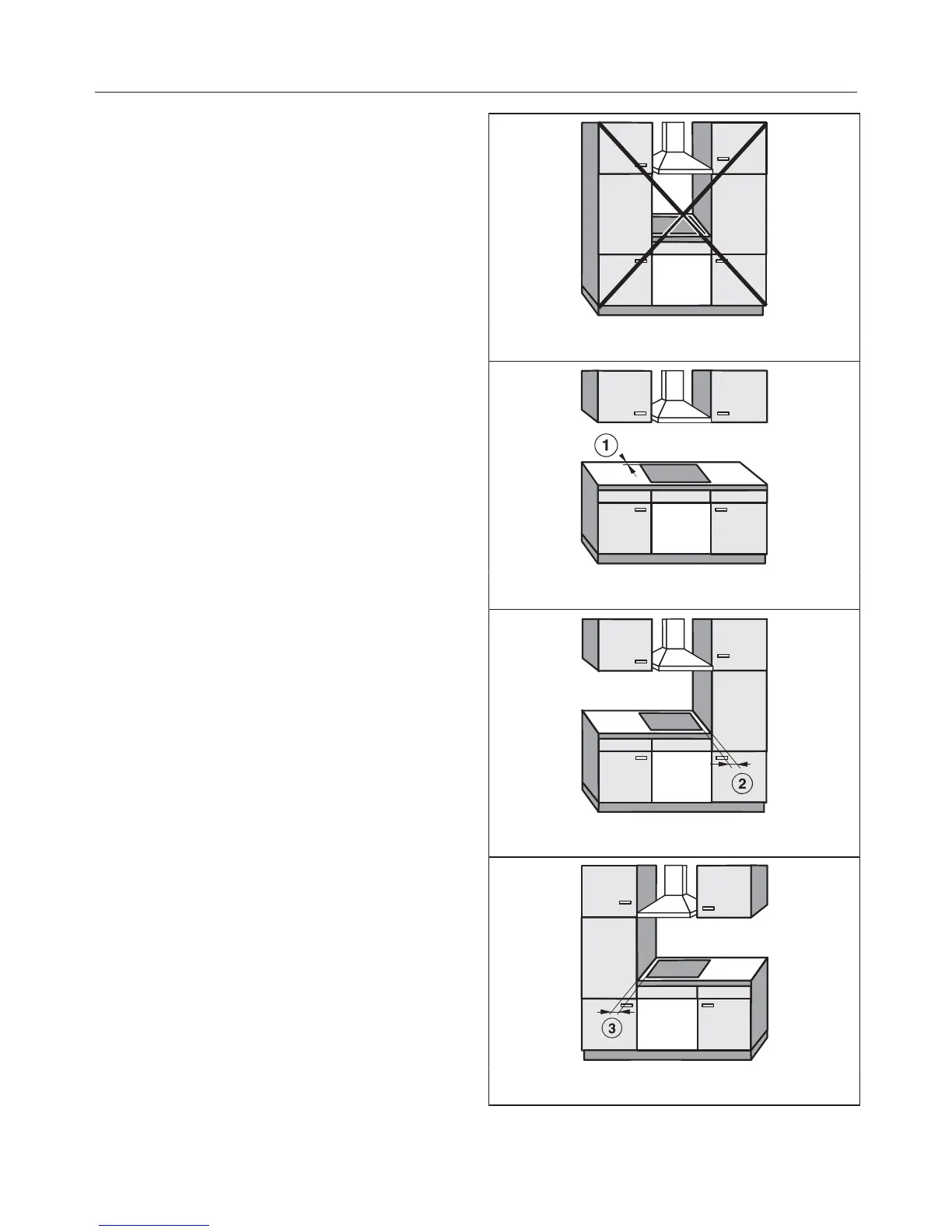

Not allowed
Highly recommended
Not recommended
Not recommended
