Appliance description
12

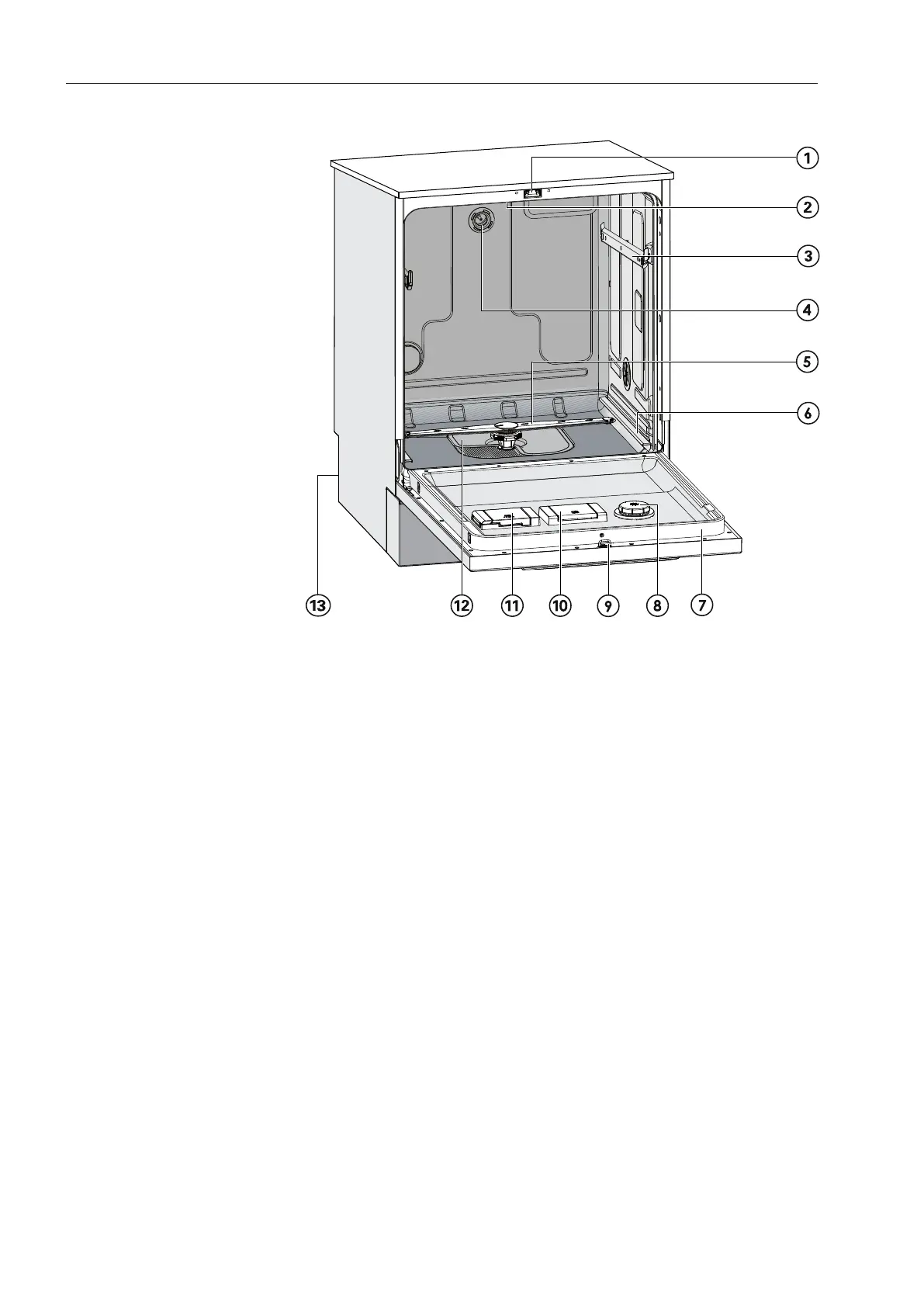

Appliance overview
a
Door lock
b
Upper spray arm (not visible)
c
Runner for upper basket
d
Connection for upper basket spray arm
e
Lower spray arm
f
Runner for lower basket
g
Data plate
h
Rinse aid reservoir
i
Door lock barrel
j
Reservoir for reactivation salt
k
Dispenser for powder detergent
l
Filter combination
m
Back:
Connection for DOS modules
External dispensing pump for liquid detergent (DOS1)
External dispensing pump for rinse aid (DOS4)
