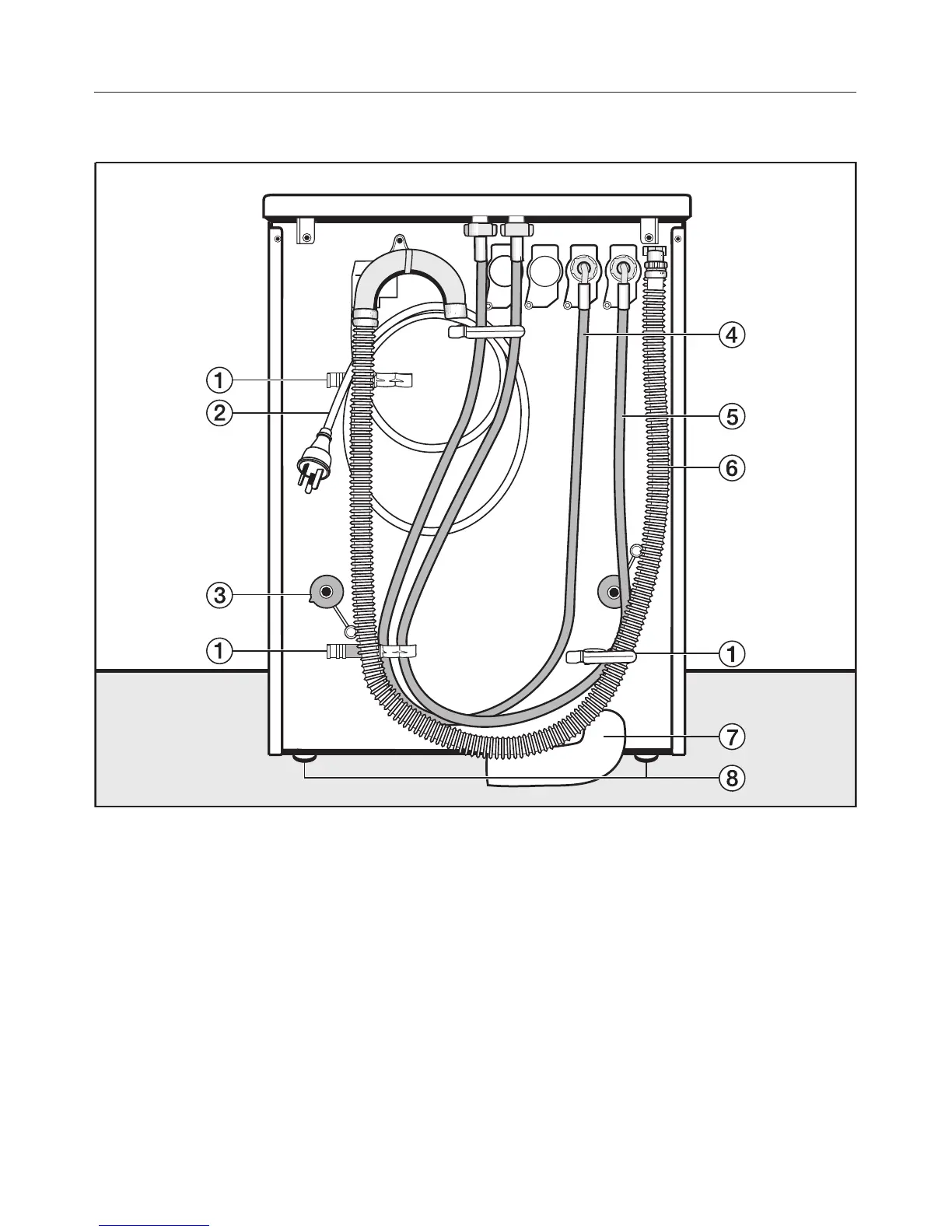

Rear view
a Holder for:
–
Inlet hose
–
Drain hose
–
Transit bars when removed
b Mains connection cable
c Safety cap for transit bars
d Inlet hose (cold water)
e Inlet hose (hot water)
f Drain hose for drain pump
g Drain pipe (optional accessory) for
machines with a dump valve
h Height adjustable feet
Installation and connection
53
