Miele TSB 143 WP User Manual

Installation
*
I
N
S
T
A
L
L
A
T
I
O
N
*
62

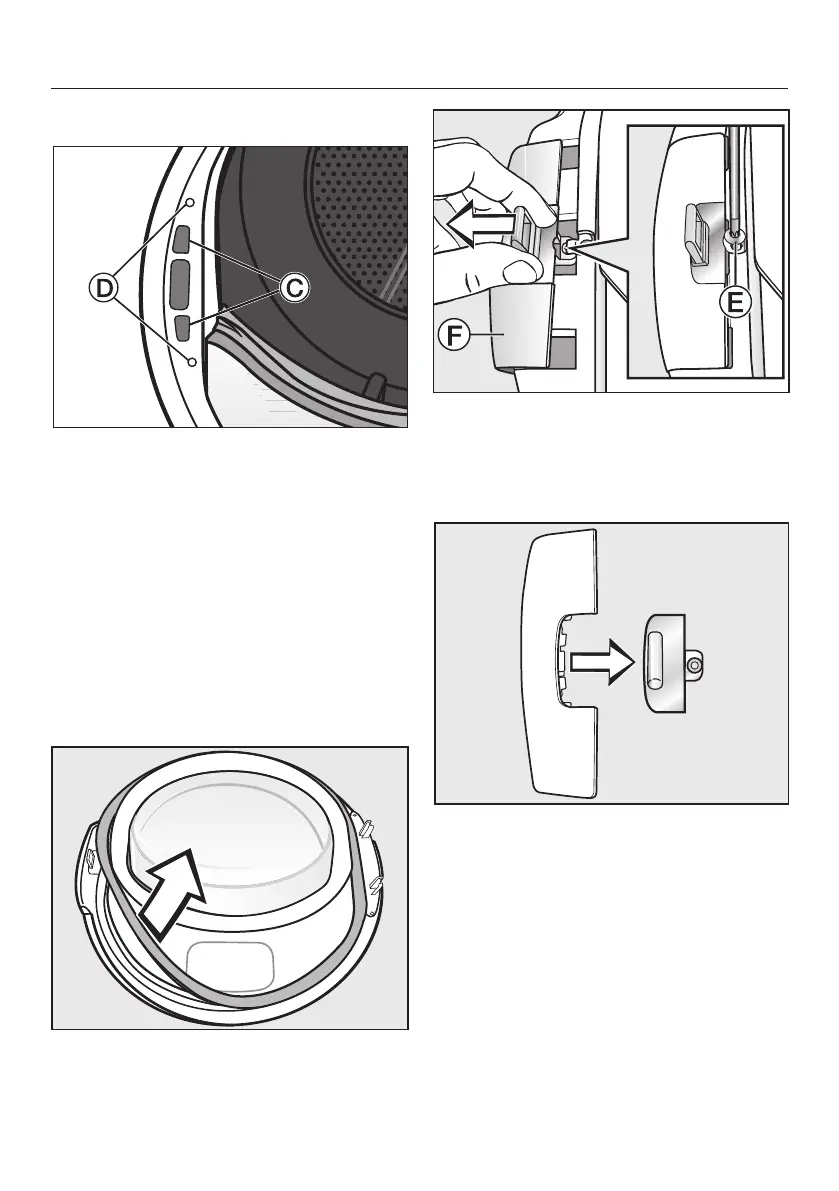

 Turn the door lock through 180°.
 Press the door lock into openings 
on the opposite side of the door
opening.
 Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
 Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
 First take the rubber seal off the door
and place this to one side.
 Use a T20 Torx screwdriver to remove
screw  on the lock catch.
 Pull off the lock catch together with
lock catch cover .
 Remove the lock catch from the
cover.
This lock catch cover is no longer
needed, however, please keep it in a
safe place.

Miele TSB 143 WP Specifications

General

Drum type	Honeycomb
Door color	White
Door hinge	Left
Door style	Opaque door
Cord length	2 m
Drum volume	120 L
Control type	Rotary, Touch
Loading type	Front-load
Drying system	Heat pump
Built-in display	Yes
Appliance placement	Freestanding
Inverter technology	No
Delay start (max)	24 h
Cycle time	155 min
Noise level	66 dB
Drying class	A
Drum capacity	7 kg
Refrigerating medium	R290
Number of drying programs	11
Current	13 A
Heat source	Electric
Connected load	1100 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy consumption	1.7 kWh
Energy efficiency scale	A+++ to D
Power consumption (off)	0.3 W
Annual energy consumption	208 kWh

Weight and Dimensions

Depth	643 mm
Width	596 mm
Height	850 mm
Weight	58000 g
Depth with door open	1077 mm
