Installation
*INSTALLATION*
77

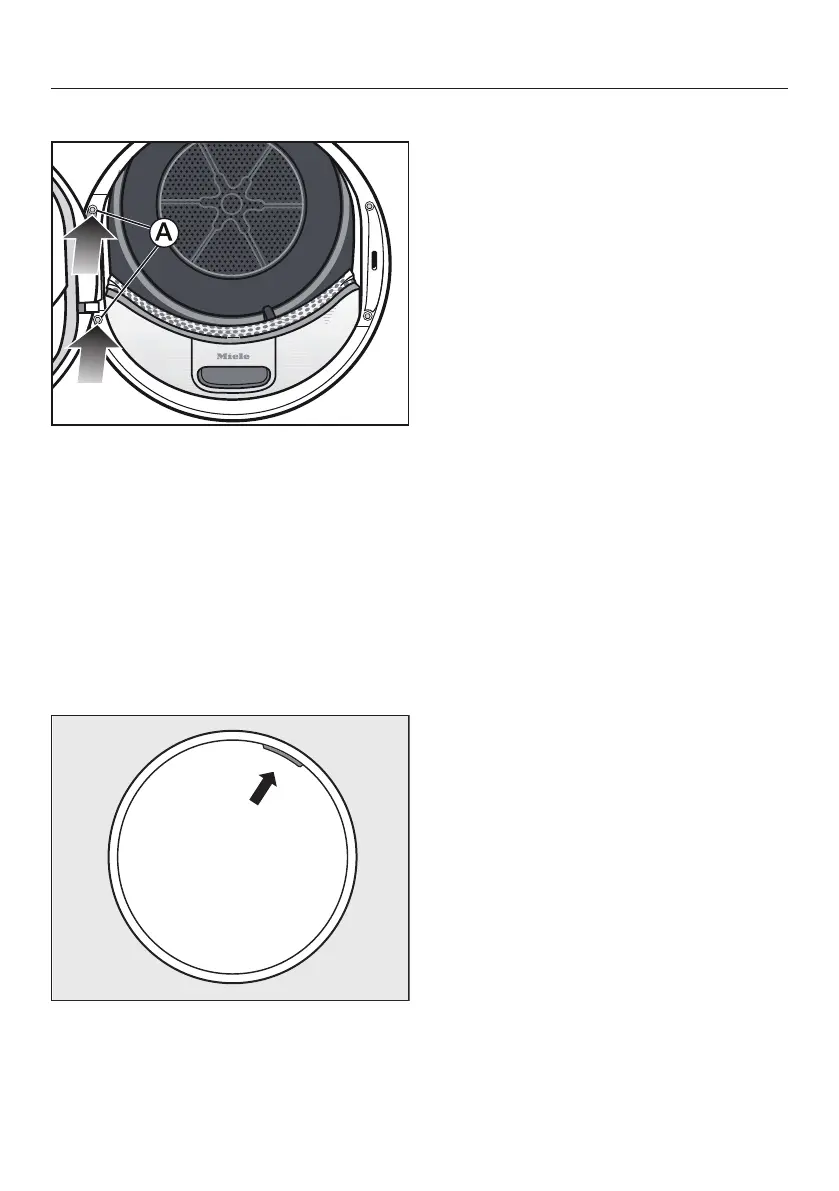

Installing the door
Position the door in front of the dryer.
Install the base of the door hinge with
its twopins in the openings on the
tumble dryer.
Tip: The base of the door hinge must
be flush with the front panel of the
dryer. The door then cannot fall off.
Screw the door securely to the dryer
at the base of the door hinge with
the two T30 screws.
The yellow maker on the right-hand
side shows operators and users which
side to open the door.
