Installation

*INSTALLATION*

80

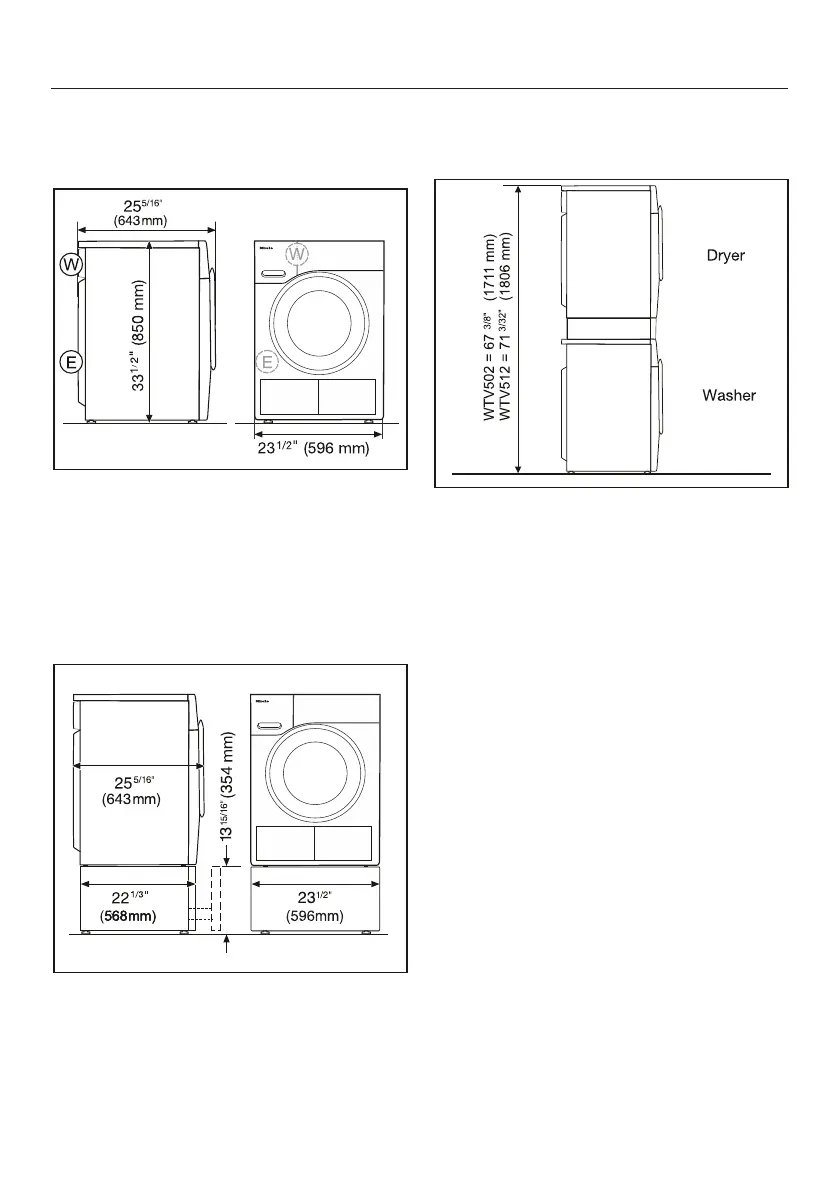

Product dimensions

Dimensions

 1.60m drain hose, detachable, top

right on the rear

 2m wiring, bottom right on the rear

Installation on a plinth

- WTS 510

Washer-dryer stack

- WTV502 or WTV512
