Dr

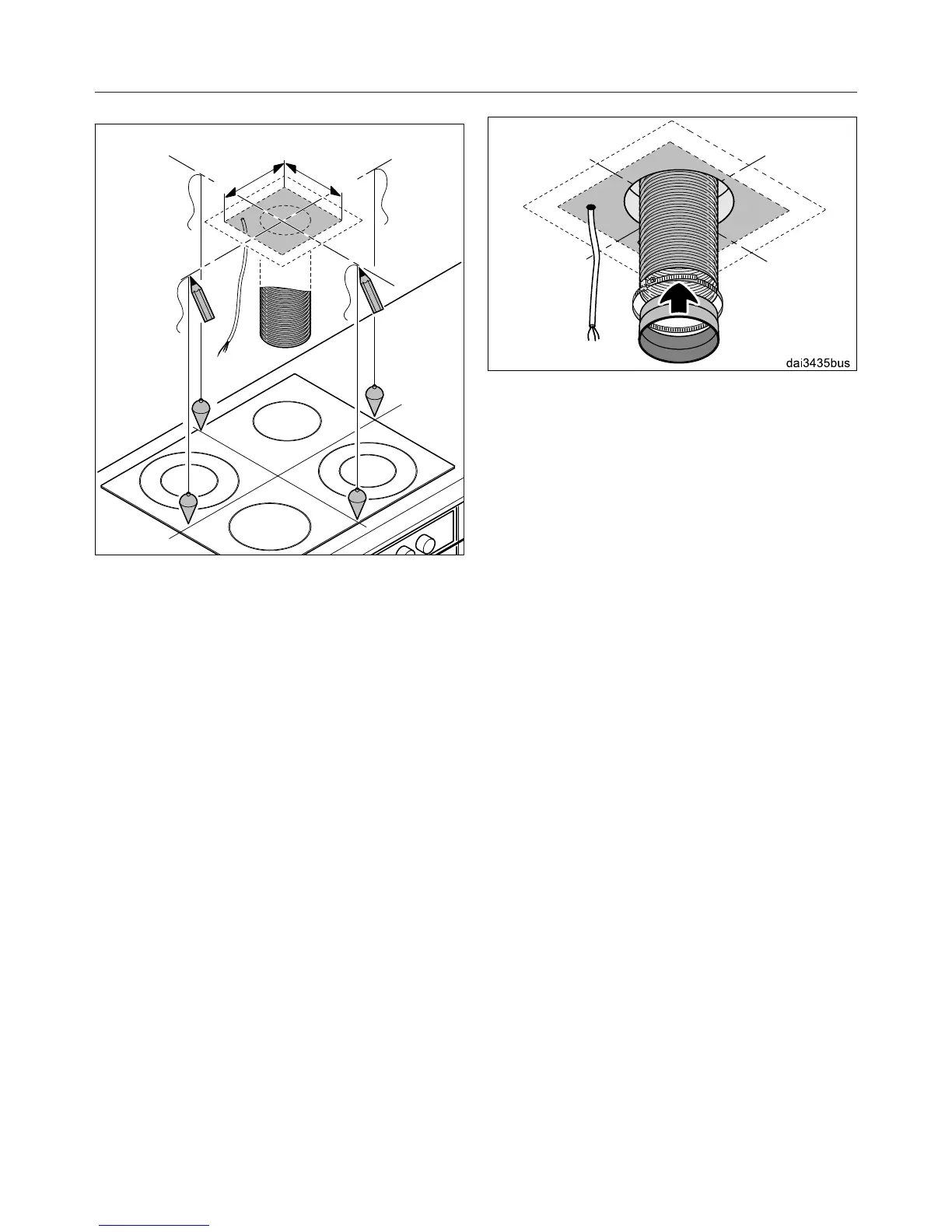

aw two intersecting lines on the
ceiling.
F
or vented mode:
– Place a section of the exhaust
ducting in the ceiling and feed it
down thr
ough the cross-sectional
area as illustrated. Exhaust ducting of
approx. 27 9/16" (700 mm) length is
required between the ceiling and the
hood exhaust socket.
– Secure the exhaust ducting to the
e
xhaust socket, e.g. with a hose clip
(available as an optional accessory)
on flexible ducting.
Place
the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 27 9/16"
(700 mm) in length is required
between the ceiling and the hood
connectors.
