In addition to insulating the exhaust
duct, w
e recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.

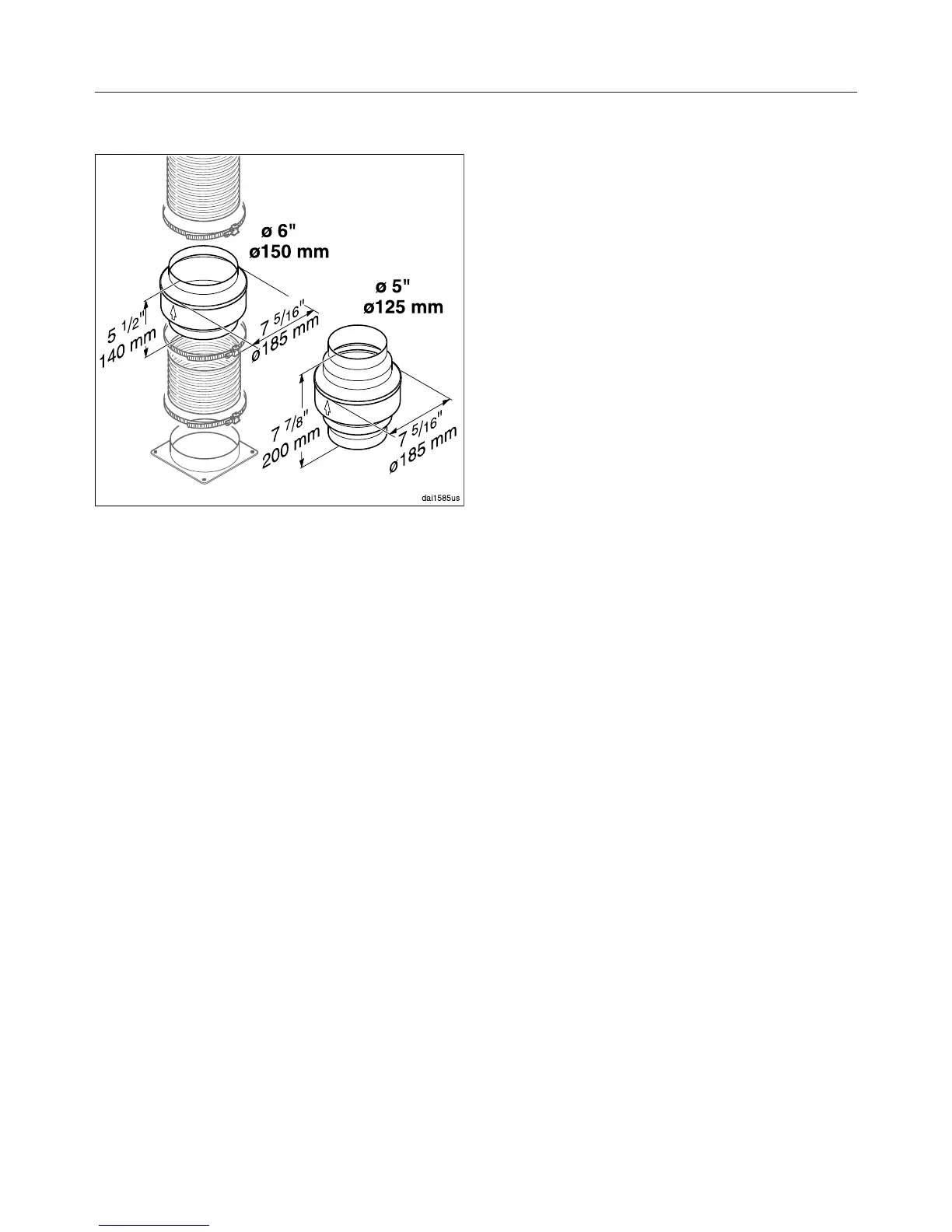

Condensate traps are available for
exhaust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
When insta
lling a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
