Installation
40

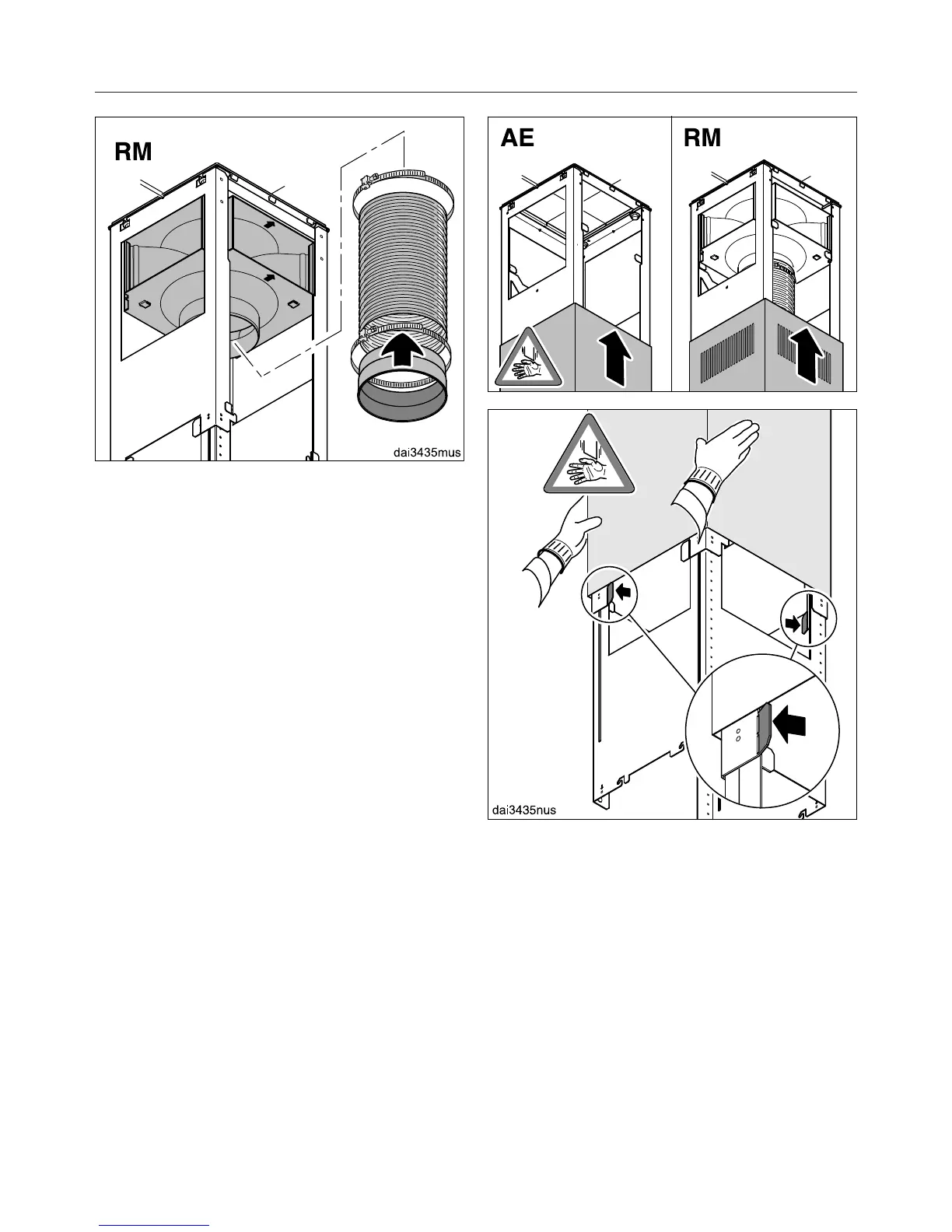

Secur
e the exhaust socket to the
hose using a hose clip.
Secur
e the hose to the directional
unit socket using a hose clip.
Che
ck that the hose is held securely.
P
ush the telescopic chimney over the
installation frame:
– with the recirculation grilles at the
bott
om for vented mode (AE),
– with the recirculation grilles at the top
for r
ecirculation mode (RM).
Bend the two r
etaining tabs outwards
to prevent the telescopic chimney
from slipping down again.
