Miele WWD 020 - Fitting the Elbow; Direct Connection to a Sink Drain Outlet

Installation
*INSTALLATION*
57

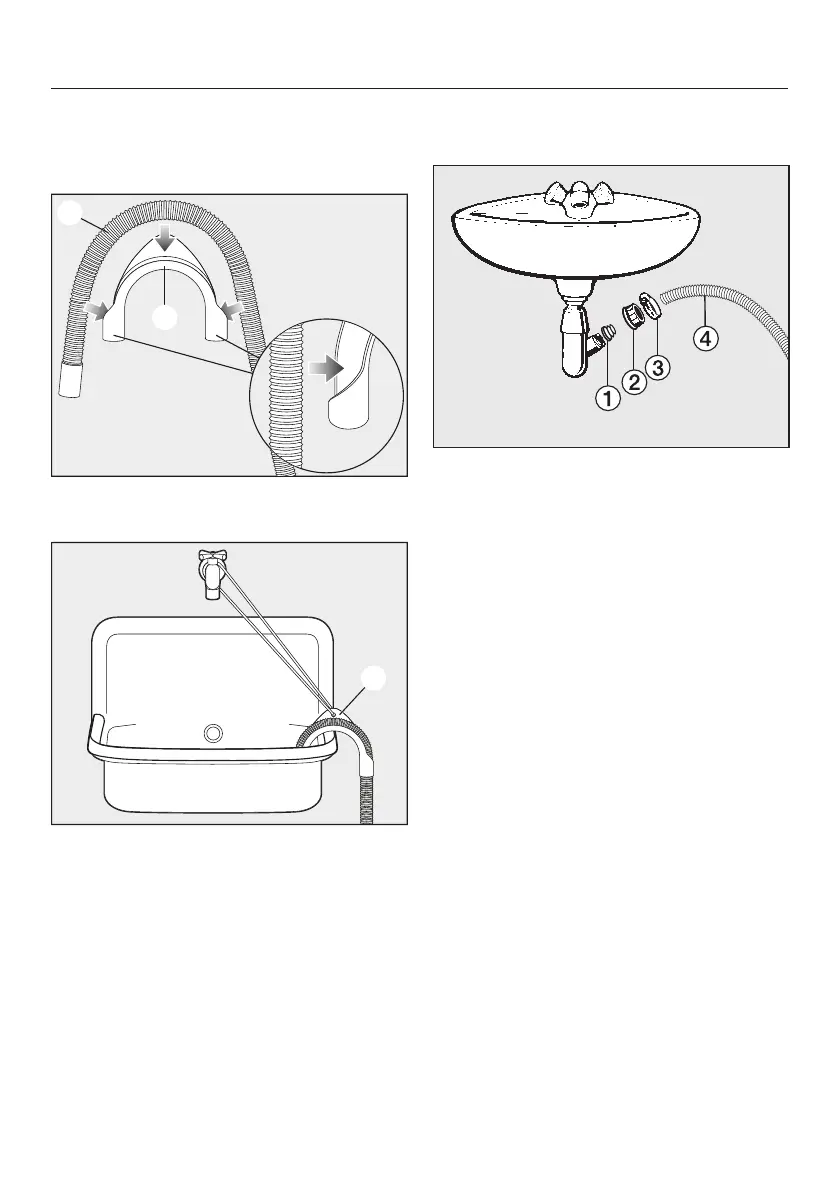

Fitting the elbow
Use the elbow supplied to stop the
drain hose from slipping.


 Attach the elbow to the drain
hose.

 Place the end of the drain hose in a
sink.
 Use a strap and the eye to stop the
elbow from slipping.
Direct connection to a sink drain out-
let
a
Adapter
b
Spigot nut
c
Hose clip
d
End of the hose
 Fit adapter  to the sink drain outlet
using nut .
 Attach the end of hose  to adapter
.
 Use a screwdriver to tighten hose clip
 up close to the nut.
