CLOSED
NOTICE!
-
Never switch on the pump in this mode!
Use this mode to clean the prefilter (if available) or checking the system for leaks and sealing the
affected spots.
The water flow in the pump and in the filter is blocked. Make sure that feed and drain hoses are filled
with water and might have to be closed off with shut-off valves or plugs.
WASTE
NOTICE!
-
The pool can only be drained up to the minimum water level at the height of the suction
line. Make sure to switch the pump off once this level is reached to prevent the pump
from running dry.
Use this mode to clean the pool in the case of heavy soiling.
The water is guided past the filter and discharged directly via the backwash line.
WINTER
NOTICE!
-
Never switch on the pump in this mode!
Use this mode to store the filter system in the winter.
The valve lever is in an intermediate position which relieves the inner valve components.
Filtering time
The pool's water content should be circulated at least twice in a 24 h period. In case of heavier
frequency, the pool water should be circulated 3 to 5 times per day.
Before First Use
Check the following before start-up
-
The device is out of the pool and the power cable is disconnected from the mains
-
Feed and drain lines are correctly attached and the water level of the pool is at least 2.5 to 5 cm
(1-2") above the opening of the suction line

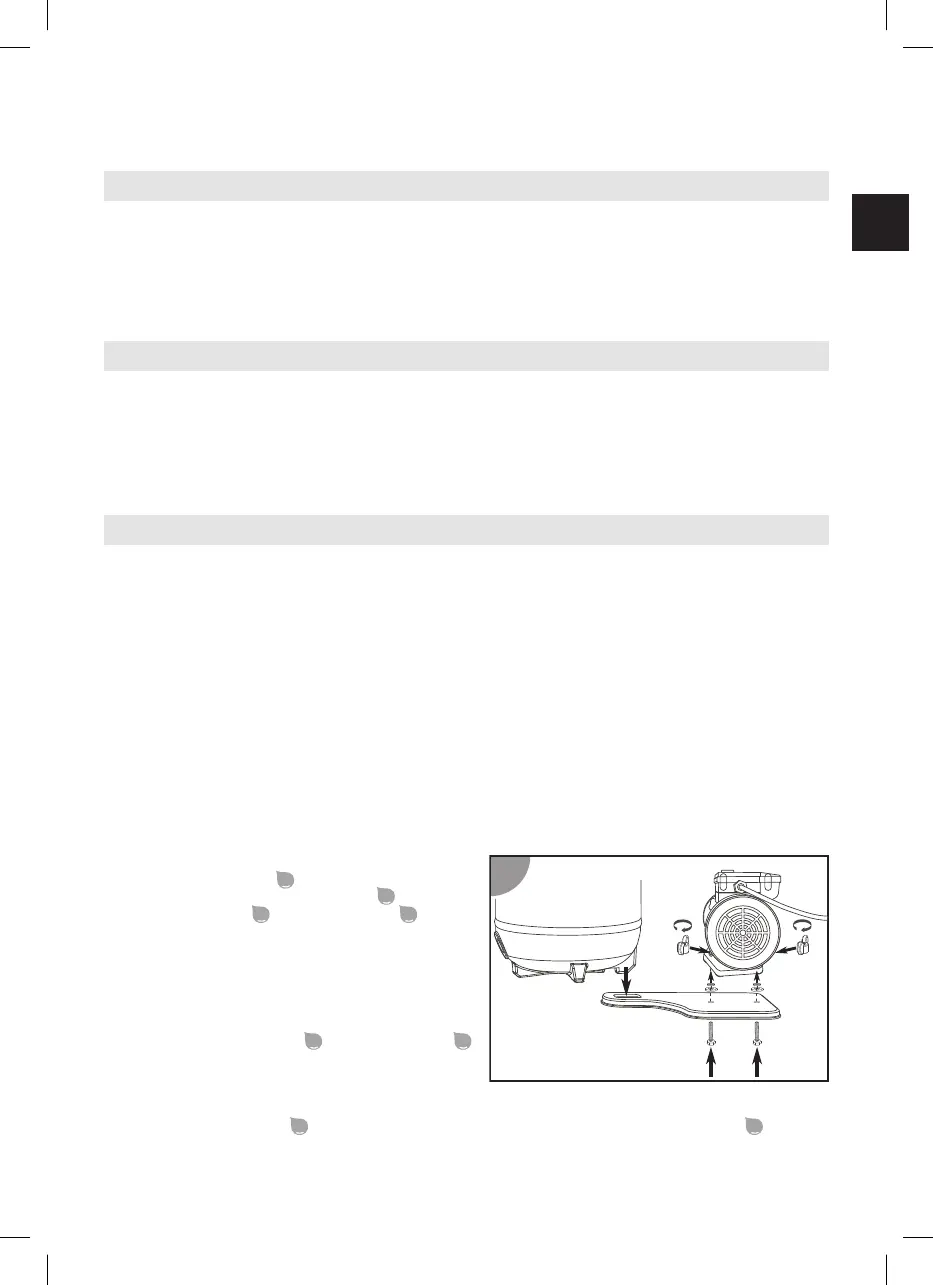

Mounting the pump on the base plate
1. Insert the threaded screws of the screw set for
fastening the pump
from below into the two
hexagonal holes in the base plate
.
2. Place the pump
on the base plate
so that
the threads protrude through the fastening
opening in the pump base.
3. Push the washer and then the serrated lock
washer over the screw thread.
4. Put on one winged screw each and tighten it.
The pump is mounted on the base plate.
5. Connect the base plate
to the filter vessel
.
The base plate is connected to the filter vessel.
Preparing the filter vessel
1. Undo the locking ring
by turning the screw counter-clockwise. Use the Allen wrench
for this
purpose.
27
To Next Page
