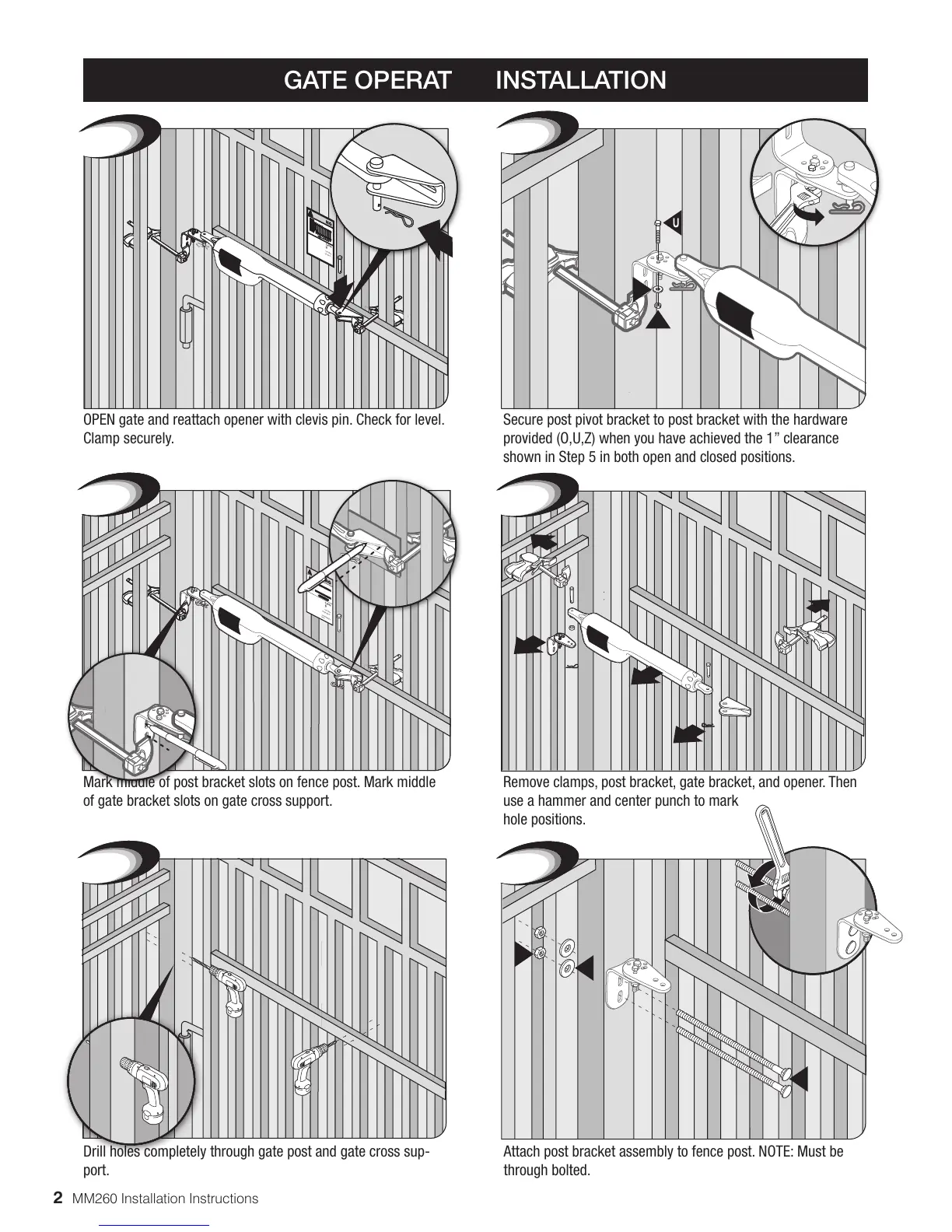

2 MM260 Installation Instructions
OPEN gate and reattach opener with clevis pin. Check for level.
Clamp securely.
Secure post pivot bracket to post bracket with the hardware
provided (O,U,Z) when you have achieved the 1” clearance
shown in Step 5 in both open and closed positions.
Mark middle of post bracket slots on fence post. Mark middle
of gate bracket slots on gate cross support.
Remove clamps, post bracket, gate bracket, and opener. Then
use a hammer and center punch to mark
hole positions.
Drill holes completely through gate post and gate cross sup-
port.
Attach post bracket assembly to fence post. NOTE: Must be
through bolted.
GATE OPERATOR INSTALLATION
1
3
5
11
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
1
2
6
U
O
Z
7
3
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
68
9
10
P
S
Y
611
