MIJO MT02 - MT02 Initial Wheelchair Connection; Initial Width and Clamp Adjustment; Aligning Middle Connecting Piece

11

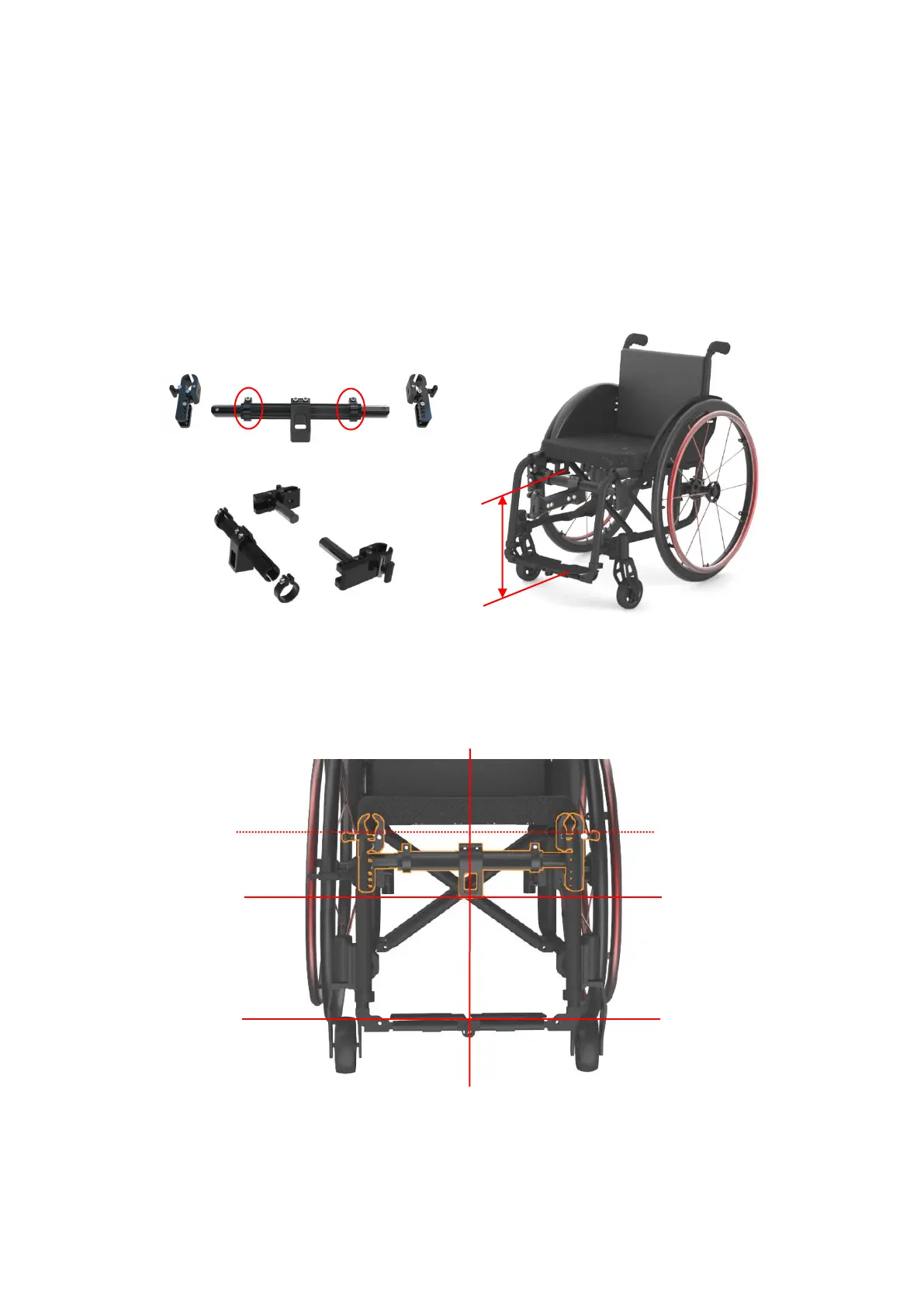

MT02 First time connecting with wheelchair instruction
1. Loosen the quick-release-pin of the connection pipe first, adjust the overall width,
and install the frame tube clamp on the wheelchair. (The intermediate connecting
pipes on both sides are about 40cm away from the ground, and the small hole in the
middle connecting piece is at the rear).
2. Loosen the bolts of the middle connecting piece and adjust the installation hole of
the middle connecting piece to be parallel to the ground.
Center
40cm
