MT01 Connection structure matching with manual
wheelchair

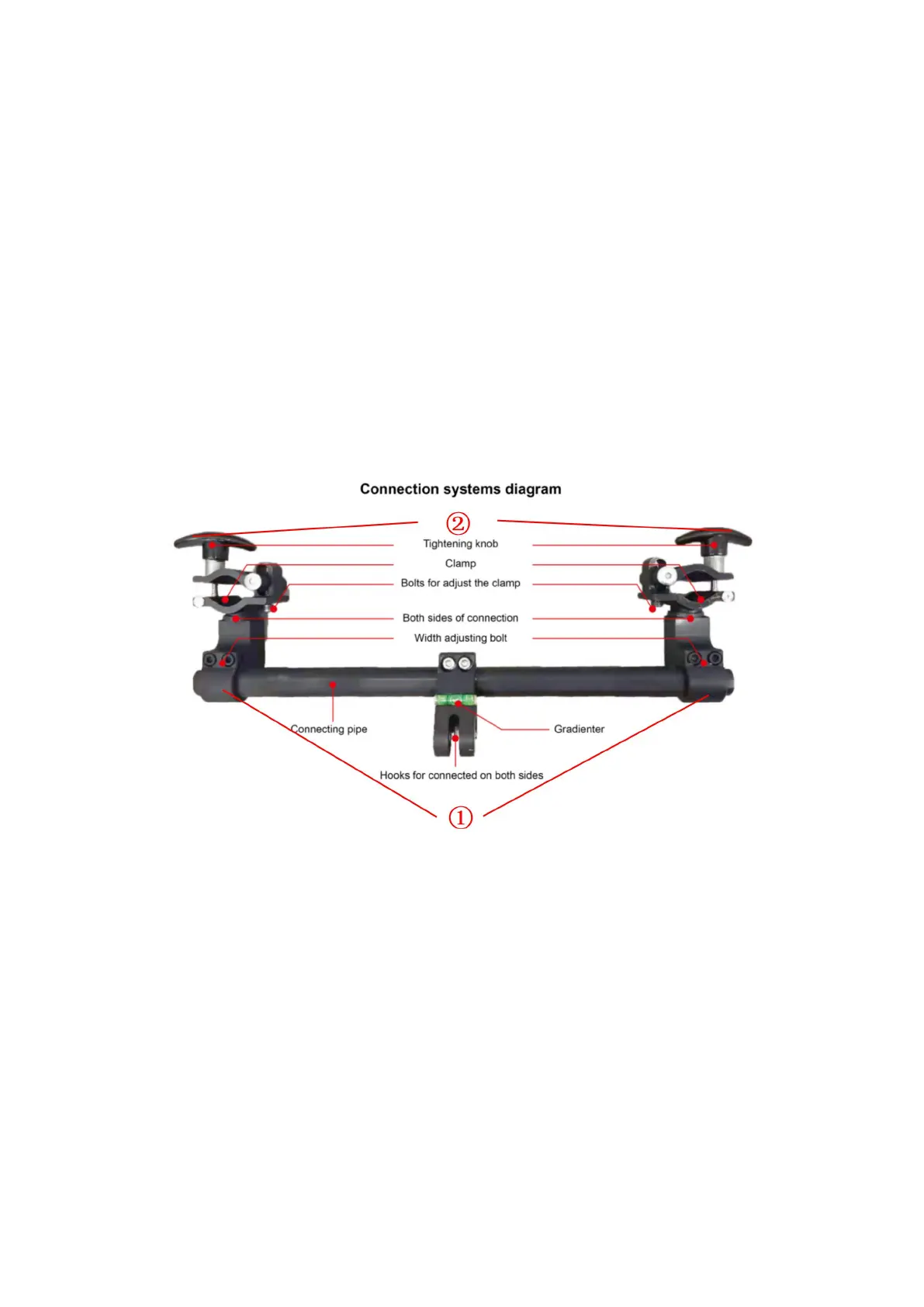

1. Loosen the width adjustment bolts① and adjust the width of the connection on
both sides to make it consistent with the width of the bridge tube of the wheelchair.
2. Adjust the pipe clamp adjusting bolts ② to make the pipe clamp suitable for pipe
diameters of different thicknesses (the pipe clamp should be clamped on the frame
protective case to prevent the frame from being pinched).
