MikroTik LtAP User Manual

1.
2.
3.
4.
Mounting

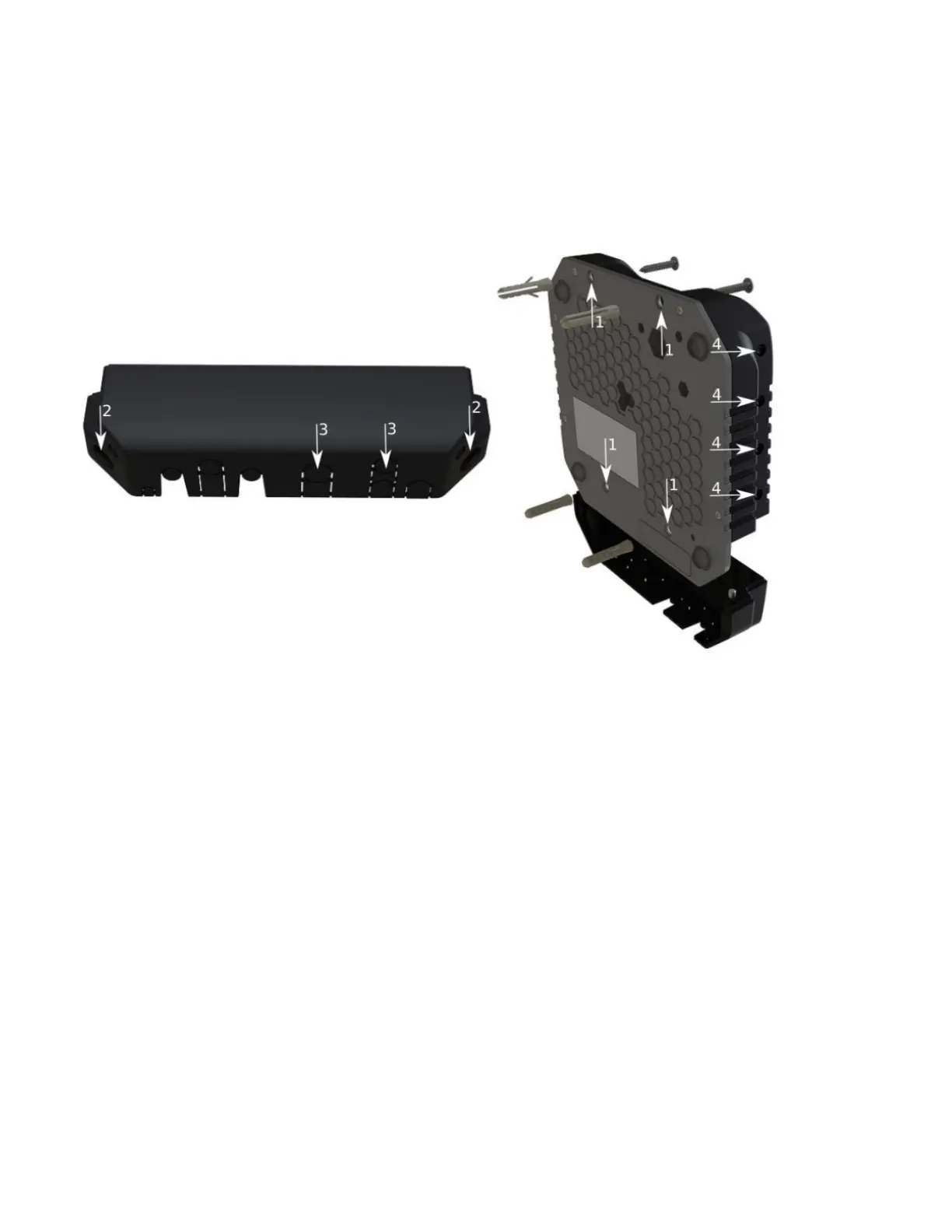

It is possible to attach the device to a wall, using the provided four screws and designed four holes on the unit.
The ports are protected with a small door, that is held in place with two screws. Remove to access Ethernet ports, antenna connector, SIM slots,
etc.
The door has cut-out places for all available ports, so you can guide through all necessary cables, but please only break out the openings that you
will use.
Several places for external antennas are provided on the case, use an appropriate size drill, to make them available. Be careful and measure the
chosen antenna, so that it does not touch the internal PCB board when installed.
The device can be used both indoors and outdoors. The IP rating scale of IP54.
If you intend to mount outdoors, please ensure that any cable openings are directed downwards. The Mounting direction is indicated on the device with an
arrow pointing up. Use POE injector and proper grounding. Recommended using Cat6 shielded cable.
Warning! This equipment should be installed and operated with a minimum distance of 30 cm between the device and your body. Operation of this
equipment in the residential environment could cause radio interference.
Configuration
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best performance and
stability. RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself
accustomed to the possibilities: . In case IP connection is not available, the Winbox tool ( ) can be used to connect to https://mt.lv/help https://mt.lv/winbox
the MAC address of the device from the LAN side (all access is blocked from the internet port by default). For recovery purposes, it is possible to boot the
device from a network, see the section .Reset button
GPS
The built-in GPS module requires an external antenna to be used (SMA connector is already mounted behind the unit door). Please see the Mounting
section on how to remove the door.
the GPS uses an active antenna, only connect and disconnect the antenna, when the device is turned off!Attention
Supports -GPS, GLONASS, BeiDou, Galileo).
Make sure that the GPS package is installed on your device. Check by following command /system package print. If not installed please download extra
packages at our download page accordingly to your RouterOS version and install GPS package by dragging it to the Files menu. Enable GPS and start
working:

MikroTik LtAP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Security algorithms	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 - 30 V
Power consumption (max)	24 W
Product color	Black
Antenna type	Internal
Flash memory	16 MB
Internal memory	128 MB
Processor frequency	880 MHz
Operating temperature (T-T)	-40 - 70 °C
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	162 mm
Width	170 mm
Height	40 mm
