Milagrow BlackCat 21 - Water Tank Setup; Wet Mop Maintenance

- 12 -

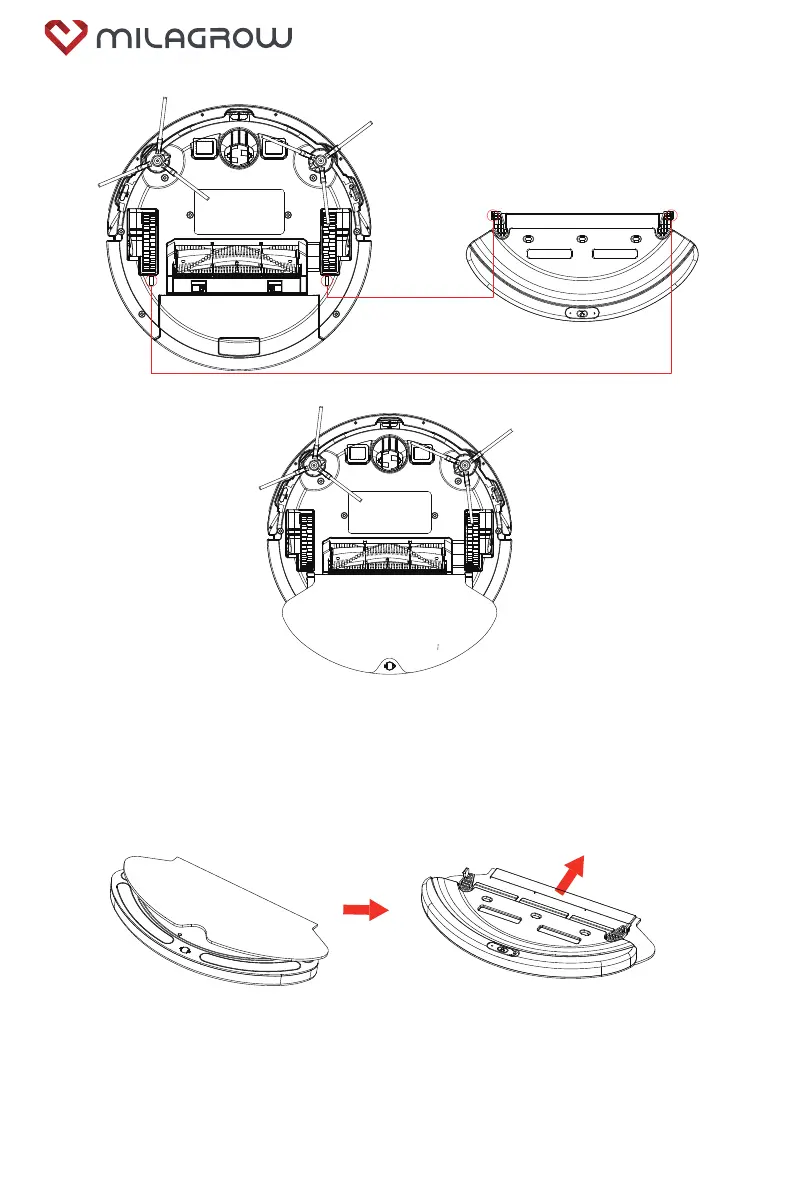

4.4.1 Installation of water tank:
4.4.2 Taking out and cleaning of wet mop:
1. Referring to the illustration for installing the water tank, take out the water tank
from the machine bottom;
2. Tear open the hook and loop open, and take out the mop along the direction as
shown in the figure;
3. Flush the mop and the water tank, and dry it naturally in shade for reuse.
1. Turn the machine upside down to the bottom, and match the buckle of water
tank with the snap-on position on the machine;
2. After the machine is placed normally, operate it normally for sweep.
BlackCat 21/RedHawk 21
